Product Summary

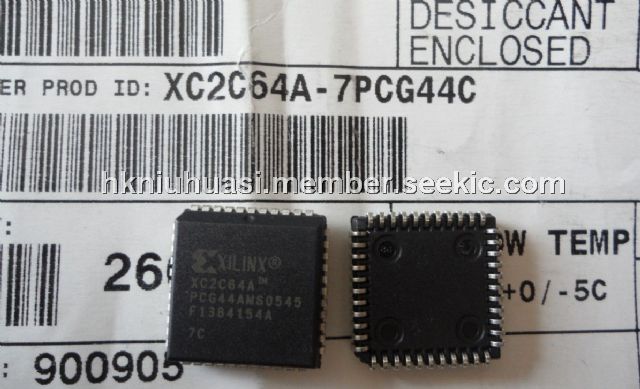

The XC2C64A-7PCG44C is a II CPLD CoolRunner. Xilinx CoolRunner.-II CPLD delivers the high speed and ease of use associated with the XC2C64A-7PCG44C with the extremely low power versatility of the XC2C64A-7PCG44C in a single CPLD. This means that the exact same parts can be used for high-speed data communications/computing systems and leading edge portable products, with the added benefit of In System Programming. Low power consumption and high speed operation of the XC2C64A-7PCG44C are combined into a single family that is easy to use and cost effective. Clocking techniques and other power saving features extend the users power budget.
Parametrics
XC2C64A-7PCG44C absolute maximum ratings: (1)VCC Supply voltage relative to GND: –0.5 2.0 V; (2)VI Input voltage relative to GND: –0.5 4.0 V; (3)TJ Maximum junction temperature: –40 150 ℃; (4)TSTR Storage temperature: –65 150 ℃.
Features
XC2C64A-7PCG44C features: (1)Optimized for 1.8V systems; (2)Industry fastest low power CPLD; (3)Densities from 32 to 512 macrocells; (4)Industry best 0.18 micron CMOS CPLD; (5)Optimized architecture for effective logic synthesis; (6)Multi-voltage I/O operation 1.5V to 3.3V; (7)Advanced system features; (8)Fastest in system programming; (9)1.8V ISP using IEEE 1532 (JTAG) interface; (10)On-The-Fly Reconfiguration (OTF); (11)IEEE1149.1 JTAG Boundary Scan Test; (12)Optional Schmitt trigger input (per pin); (13)Multiple I/O banks on all devices; (14)Unsurpassed low power management.

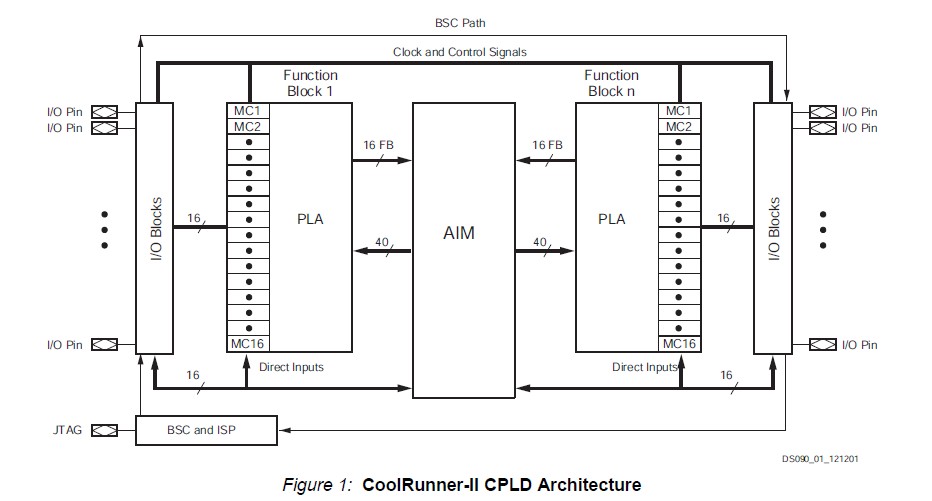

Diagrams
