Product Summary
The MAX514BCNG contains four 12bit R2R multiplying digital to analog converters, each with a serial in parallel out shift register, a DAC register design minimizes the number of package pins and internal level translators, so it uses less board space and dissipates less power than parallel interface devices. The device uses low tempco thin film resistors, laser trimmed to ±1LSB linearity, with gain accuracy better than ±1 1/2 LSB. The MAX514BCNG is specified with a +5V power supply. All logic inputs are TTL and CMOS compatible. It comes in space-saving 24pin DIP and 28pin SO packages.
Parametrics
MAX514BCNG absolute maximum ratings: (1)VDD to GND: -0.3V to +17V; (2)VREF to GND: ±25V; (3)VREB to GND: ±25V; (4)Digital Input Voltage to GND: -0.3V to (VDD + 0.3V); (5)IOUTA to GND: -0.3V to VDD + 0.3V; (6)Maximum Current into Any Pin: 50mA; (7)Operating Temperature Ranges: 0℃ to +70℃; (8)Storage Temperature Range: -65℃ to +150℃; (9)Lead Temperature (soldering, 10sec):+300℃.
Features
MAX514BCNG features: (1)Four 12-Bit Accurate DACs; (2)Fast 3-wire serial interface; (3)Low differential nonlinearity: ±1/2 LSB Max; (4)Low integral nonlinearity: ±1LSB Max; (5)Gain accuracy to ±1 1/2 LSB Max; (6)Low gain tempco: 5ppm/℃ Max; (7)Operates from a single +5V power supply; (8)TTL/CMOS compatible; (9)Available in 24-Pin DIP and 28Pin SO packages.

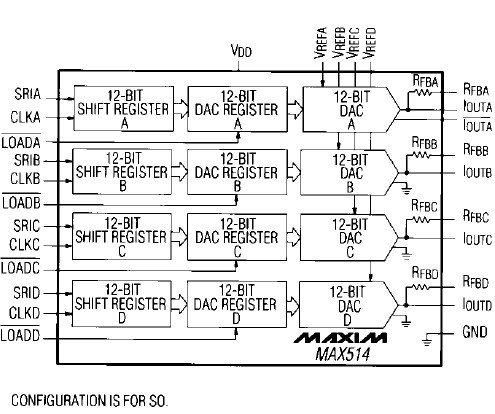

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX514BCNG |
Maxim Integrated Products |
DAC (D/A Converters) |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX514BCNG+ |
Maxim Integrated Products |
DAC (D/A Converters) 12-Bit 4Ch Precision DAC |
Data Sheet |
|
|
||||||||||||
