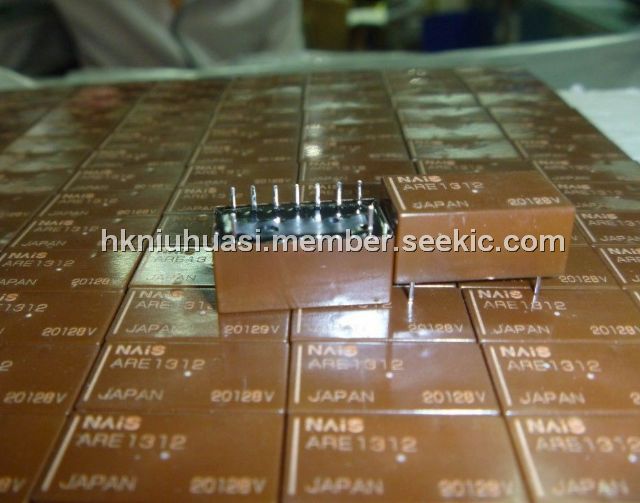

Product Summary

The ARE1312 is a 2.6 GHz, 75Ω relay.

Parametrics

ARE1312 absolute maximum ratings: (1)Initial insulation resistance: Min. 100 MΩ (at 500 V DC); (2)Initial breakdown voltage: Between open contacts: 500 Vrms; Between contact and coil: 1,000 Vrms; Between contact and ground terminal: 500 Vrms; (3)Operate time: Max. 10ms; (4)Release time (without diode)*3 (at 20℃): Max. 5ms; (5)Temperature rise: Max. 60℃; (6)Shock resistance, Functional: Min. 500 m/s2; Destructive: Min. 1,000 m/s2; (7)Vibration resistance, Functional: 10 to 55 Hz at double amplitude of 3 mm; Destructive: 10 to 55 Hz at double; (8)amplitude of 5 mm.

Features

ARE1312 features: (1)Arrangement: 1 Form C; (2)Contact material: Gold; (3)Initial contact resistance: Max. 100mΩ; (4)Rating, Contact rating: 1W; (5)Contact carrying power: 10W (at 2.6GHz, Impedance 75W, V.S.W.R. Max.1.5); (6)Max. switching voltage: 30 V DC; (7)Max. switching current: 0.5 A DC; (8)Nominal operating power: 200 mW.

Diagrams

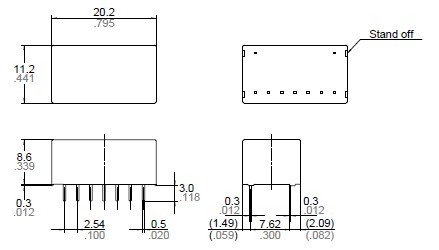

ARE1312 DIMENSIONS

ARE1003
ARE1003

Panasonic Electric Works

High Frequency / RF Relays 1 Form C, 3VDC 0.5A 30VDC Relay

Data Sheet

0-1: $3.53
1-25: $3.17
25-50: $2.82
50-100: $2.54
