Product Summary

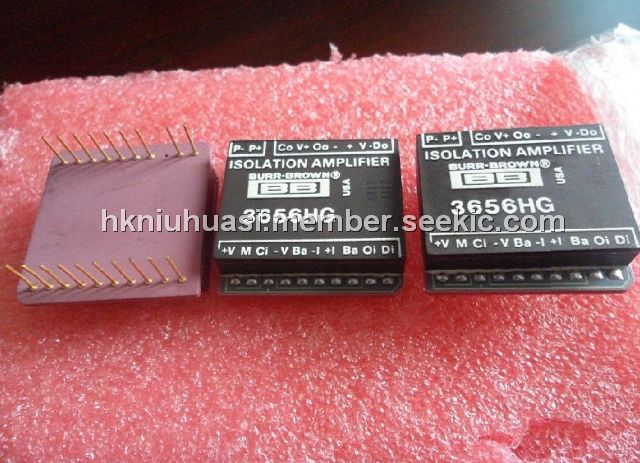

The 3656HG is a transformer coupled isolation amplifier. The 3656HG was the first amplifier to provide a total isolation function, both signal and power isolation, in integrated circuit form. This remarkable advancement of the 3656HG in analog signal processing capability was accomplished by use of a patented modulation technique and miniature hybrid transformer. Versatility and performance are outstanding features of the 3656HG. It is capable of operating with three completely independent grounds (three-port isolation). In addition, the isolated power generated is available to power external circuitry at either the input or output.
Parametrics
3656HG absolute maximum ratings: (1)Supply Without Damage: 16V; (2)Input Voltage Range Using Internal Supply: ±8V; (3)Input Voltage Range Using External Supply: Supply; (4)Continuous Isolation Voltage: 3500, (1000) VDC; (5)Storage Temperature: –65℃ to +125℃; (6)Lead Temperature, (soldering, 10s): +300℃.
Features
3656HG features: (1)Internaisolated power; (2)8000V isolation test voltage; (3)0.5mA max leakage at 120V, 60Hz; (4)3-port isolation; (5)IMR: 125dB rejection AT 60Hz; (6)1x 1 x 0.25" ceramic package.

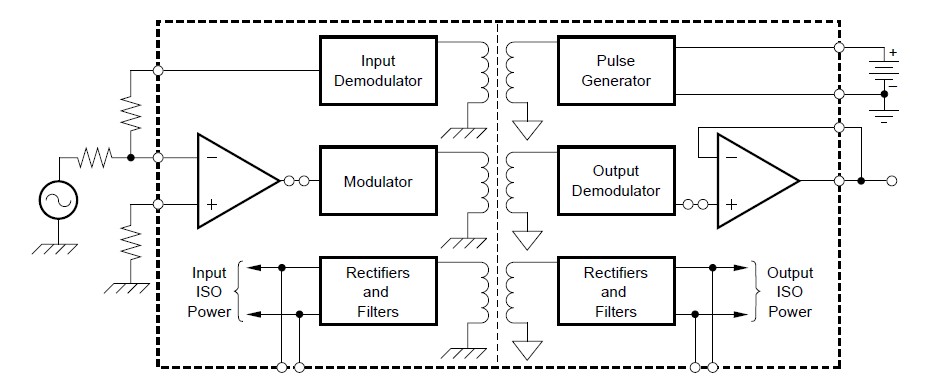

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 3656HG |
Texas Instruments |
Special Purpose Amplifiers Transformer Coupled Iso Amp |
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
36562-001 |
FCI |
Hand Tools TONKER WIRE POSTIONR |
Data Sheet |
|
|
||||||||||||
|
36562-002 |
FCI |
Hand Tools TONKER WIRE POSTIONR |
Data Sheet |
|
|
||||||||||||
|
3656HG |
Texas Instruments |
Special Purpose Amplifiers Transformer Coupled Iso Amp |
Data Sheet |
Negotiable |
|
||||||||||||
|
3656JG |
Texas Instruments |
Special Purpose Amplifiers Transformer Coupled Iso Amp |
Data Sheet |
Negotiable |
|
||||||||||||
|
3656KG |
Texas Instruments |
Special Purpose Amplifiers Transformer Coupled Iso Amp |
Data Sheet |
Negotiable |
|
||||||||||||
|
3656AG |
Texas Instruments |
Special Purpose Amplifiers Transformer Coupled Iso Amp |
Data Sheet |
Negotiable |
|
||||||||||||
