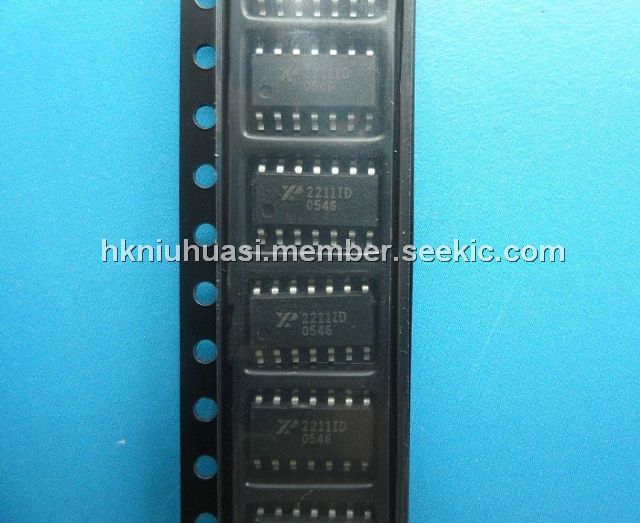

XR2211ID

FSK Demodulator, Tone Decoder, SOP14, 0.01Hz to 300kHz, 4.5V to 20V, Wide Dynamic Range

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~2.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.50~2.20

PartNumber:: XR2211ID

Brand:: Exar Corporation - EXAR | Pack: SOP | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Becky's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-13

From Other Seller

Part Number:XR2211ID
US $1.50 - 2.20
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The XR2211ID is a monolithic phase-locked loop (PLL) system especially designed for data communications applications. It is particularly suited for FSK modem applications. The XR2211ID operates over a wide supply voltage range of 4.5 to 20V and a wide frequency range of 0.01Hz to 300kHz. It can accommodate analog signals between 10mV and 3V, and can interface with conventional DTL, TTL, and ECL logic families. The XR2211ID circuit consists of a basic PLL for tracking an input signal within the pass band, a quadrature phase detector which provides carrier detection, and an FSK voltage comparator which provides FSK demodulation. External components are used to independently set center frequency, bandwidth, and output delay. An internal voltage reference proportional to the power supply is provided at an output pin. The XR2211ID is available in 14 pin packages specified for military and industrial temperature ranges.

Parametrics

XR2211ID absolute maximum ratings: (1)Power Supply: 20V; (2)Input Signal Level: 3V rms; (3)Power Dissipation: 900mW; (4)Package Power Dissipation Ratings, CDIP: 750mW; (5)Derate Above TA = 25℃: 8mW/℃; (6)PDIP: 800mW; (7)Derate Above TA = 25℃: 60mW/℃; (8)SOIC: 390mW; (9)Derate Above TA = 25℃: 5mW/℃.

Features

XR2211ID features: (1)Wide Frequency Range: 0.01Hz to 300kHz; (2)Wide Supply Voltage Range: 4.5V to 20V; (3)HCMOS/TTL/Logic Compatibility; (4)FSK Demodulation, with Carrier Detection; (5)Wide Dynamic Range, 10mV to 3V rms; (6)Adjustable Tracking Range: +1% to 80%; (7)Excellent Temp. Stability: +50ppm/℃, max.
