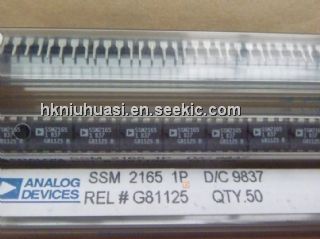

SSM2165-1P

Microphone Preamplifier, Low Noise and Distortion, 10 V, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.35~4.32 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	4.32 / Piece
50 ~ 500 :	3.50 / Piece
1000 ~ 2000 :	3.35 / Piece

PartNumber:: SSM2165-1P

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 1/Year Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Becky's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-05

From Other Seller

Part Number:SSM2165-1P
US $3.35 - 4.32
Quantity:

piece

Product Summary

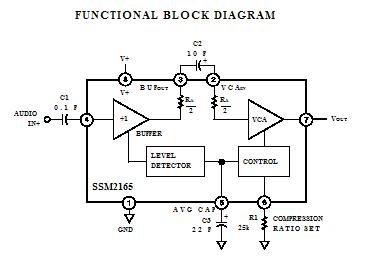

The SSM2165-1P is a Microphone Preamplifier with Variable Compression and Noise Gating. It is a complete and flexible solution for condition-ing microphone inputs in computer audio systems. SSM2165-1P is alsoexcellent for improving vocal clarity in communications andpublic address systems. A low noise voltage controlled amplifier(VCA) provides a gain that is dynamically adjusted by a controlloop to maintain a set compression characteristic. The compression ratio is set by a single resistor and can be varied from 1:1 toover 15:1 relative to the fixed rotation point. The SSM2165-1P is an ideal companion product for audio codecsused in computer systems, such as the AD1845 and AD1847.The device is available in 8-lead SOIC and P-DIP packages, andguaranteed for operation over the extended industrial temperaturerange of –40℃ to +85℃.

Parametrics

SSM2165-1P absolute maximum ratings: (1)Supply Voltage: +10 V; (2)Audio Input Voltage: Supply Voltage; (3)Operating Temperature Range:–40℃ to +85℃; (4)Storage Temperature Range: –65℃ to +150℃; (5)Junction Temperature (TJ): +150℃; (6)Lead Temperature (Soldering, 60 sec): +300℃.

Features

SSM2165-1P features: (1)Complete Microphone Conditioner in an 8-Lead Package; (2)Single +5 V Operation; (3)Preset Noise Gate Threshold; (4)Compression Ratio Set by External Resistor; (5)Automatic Limiting Feature Prevents ADC Overload; (6)Adjustable Release Time; (7)20 kHz Bandwidth ( 1 dB); (8)Low Cost; (9)Low Noise and Distortion.
