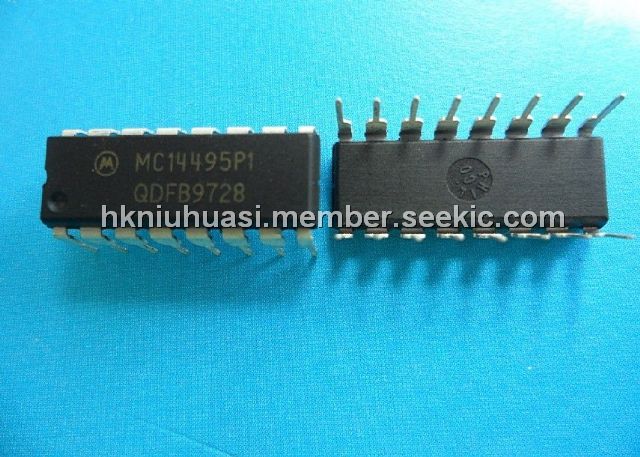

Product Summary

The MC14495-1 is constructed with CMOS enhancement mode devices and NPN bipolar output drivers in a monolithic structure. The MC14495P1 circuit provides the functions of a 4bit storage latch. The decoder is implemented utilizing a mask programmable ROM.

Parametrics

MC14495P1 absolute maximum ratings: (1)Power Supply Voltage, V+: +18 Vdc; (2)Input Voltage, Vin: -0.5 to VDD+0.5Vdc; (3)Operating Temperature Range TA: -40 to +85℃; (4)Storage Temperature Range: -65 to +150℃.

Features

MC14495P1 features: (1)Low logic circuit power dissipation; (2)High current sourcing outputs with internal limiting resistors; (3)latch storage of code; (4)supply voltage range: 4.5 to 18V; (5)CMOS input switching levels; (6)standard ROM provides hex to seven segment decoding.

Diagrams

MC14495P1 block diagram
