Product Summary
The HY62256ALJ-70 is a high-speed, low power and 32,786 x 8-bits CMOS Static Random Access Memory fabricated using Hyundais high performance CMOS process technology. The HY62256ALJ-70 has a data retention mode that guarantees data to remain valid at the minimum power supply voltage of 2.0 volt. Using the CMOS technology, supply voltages from 2.0 to 5.5 volt has little effect on supply current in the data retention mode. The HY62256ALJ-70 is suitable for use in low voltage operation and battery back-up application.
Parametrics
HY62256ALJ-70 absolute maximum ratings: (1)VCC, VIN, VOUT, Power Supply Input/Output Voltage: -0.5 to 7.0 V; (2)TA, Operating Temperature: 0 to 70 ℃ ; (3)TSTG, Storage Temperature: -65 to 150 ℃; (4)PD, Power Dissipation: 1.0 W; (5)IOUT, Data OutPut Current: 50 mA; (6)TSOLDER, Lead Soldering Temperature& Time: 260 /10 ℃ / sec.
Features
HY62256ALJ-70 features: (1)Fully static operation and Tri-state outputs ; (2)TTL compatible inputs and outputs ; (3)Low power consumption: 2.0V(min.) data retention ; (4)Standard pin configuration: 28 pin 600 mil PDIP; 28 pin 330 mil SOP; 28 pin 8x13.4 mm TSOP-1 (standard and reversed).

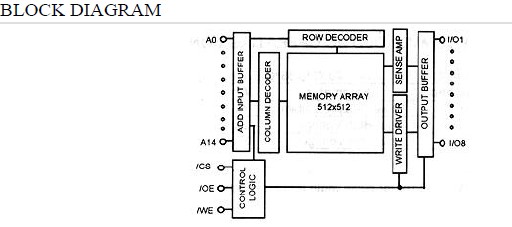

Diagrams
 |
