Product Summary

The SCD243110QCD is a 4-channel synchronous/asynchronous communications controller specifically designed to reduce host-system processing overhead and increase efficiency in a wide variety of communications applications. The SCD243110QCD is packaged in a 100-pin MQFP, and offers eight clock/modem pins per channel. The device has four fully independent serial channels that support asynchronous, asynchronous-HDLC, and bit-synchronous (HDLC/SDLC) protocols. The SCD243110QCD is based on a proprietary on-chip RISC processor that performs all time-critical, low-level tasks that are otherwise performed by the host system. The SCD243110QCD boosts system efficiency with on-chip DMA, on-chip FIFOs, intelligent vectored interrupts, and intelligent protocol processing. The on-chip DMA controller provides "fire-andforget transmit" support — the host need only inform the CD2431 of the location of the packet to be sent. Similarly, on receive, the SCD243110QCD automatically receives a complete packet with no host intervention or assistance required.

Parametrics

SCD243110QCD absolute maximum ratings: (1)Operating ambient temperature (TA):0℃ to 70℃; (2)Storage temperature: -65℃ to 150℃; (3)All voltages with respect to ground: -0.5 V to VCC +0.5 V (volts); (4)Supply voltage (VCC): +7.0 V; (5)Power dissipation: 0.25 W (watt).

Features

SCD243110QCD features: (1)Four full-duplex multi-protocol channels, each running up to 134.4 kbits/second (with CLK =35 MHz); (2)Supports async, async-HDLC (high-level data link control), and HDLC/SDLC (synchronous data link control; non-multidrop) on all channels; (3)32-bit address, 16-bit data, double-buffered DMA controller for each transmitter and receiver; two independent bit-rate generators per channel for transmit and receive; (4)On-chip NRZ (nonreturn-to-zero), NRZI (nonreturn-to-zero inverted), and Manchester data encoding and decoding; (5)DPLL (digital phase locked loop) on each receiver; (6)Two independent timers per channel PPP (Point-to-Point Protocol) Features: Supports data link level — RFC-1661; Supports dual async control character maps (32 control characters); (7)RFC-1662 Async-HDLC Features: Compatible with ISO 3309/4335 Addendum 1; Automatic insertion and deletion of control/ escape characters and bit complements; Automatic generation and detection of 16-bit FCS (frame check sequence); (8)MNP 4 V.42 Features: AppleTalk Remote Access Protocol 1.0/2.0; (9)SLIP Features: Supports data link level — RFC-1055 HDLC/SDLC.

Diagrams

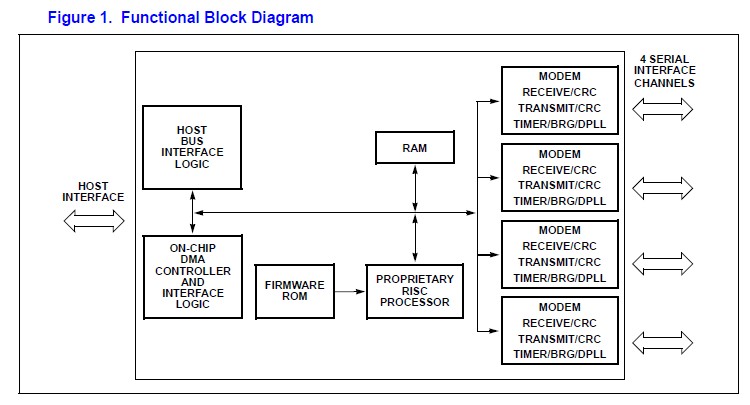

SCD243110QCD Functional Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

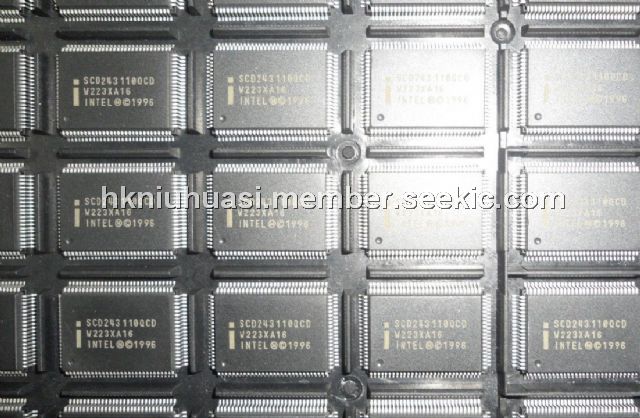

SCD243110QCD
SCD243110QCD

Intel

IC 4CH SER WAN COM CNTRL 100MQFP

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

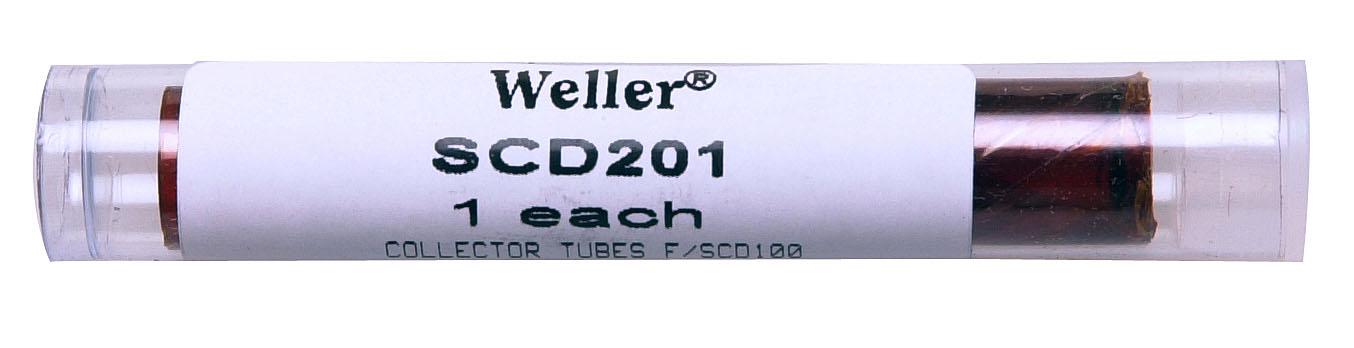

SCD201
