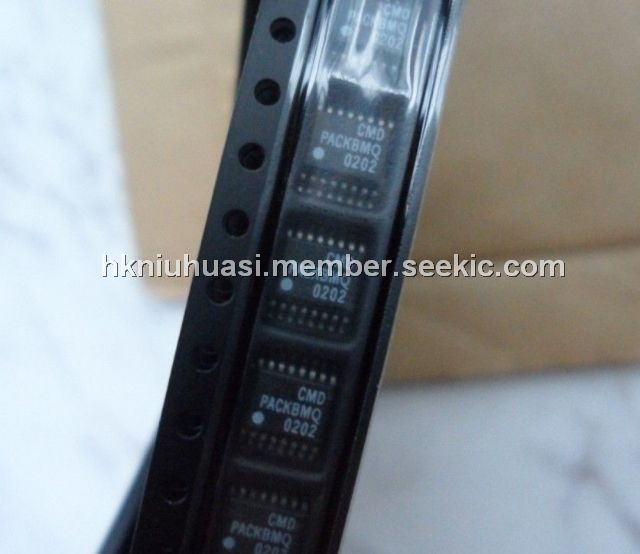

Product Summary

The PACKBMQ keyboard/mouse port interface provides filtering and pull-up termination of the keyboard and mouse signals as well we ESD protection. The signals from the keyboard/mouse controller contain high frequency EMI signals that must be reduced before the connector. Likewise, the signals from the PACKBMQ must be protected from any possible external charges such as static electricity.

Parametrics

PACKBMQ absolute maximum ratings: (1)storage temperature range: -65 to 150℃; (2)ambient operating temperature range: -40 to 85℃.

Features

PACKBMQ feature: integrated network contains complete filter, solution and ESD protection diodes.

Diagrams

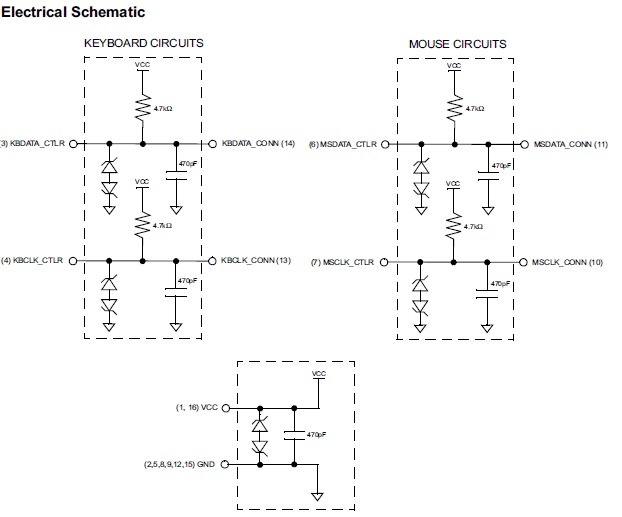

PACKBMQ electrical schematic
