Product Summary

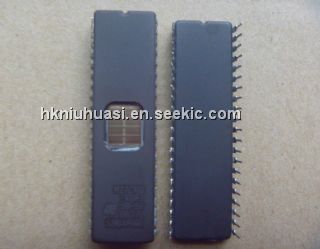

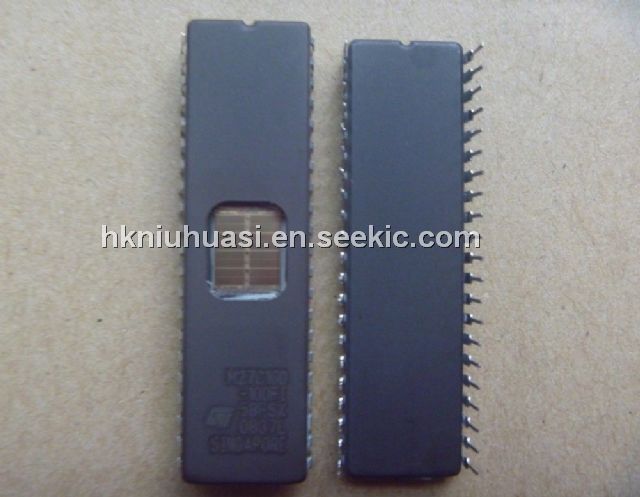

The M27C160-100F1 is a 16 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for microprocessor systems requiring large data or program storage and is organised as either 2 Mbit words of 8 bit or 1 Mbit words of 16 bit. The pin-out is compatible with a 16 Mbit Mask ROM. The FDIP42W (window ceramic frit-seal package)
has a transparent lid which allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written rapidly to the device by following the programming procedure. For applications where the content is programmed only one time and erasure is not required, the M27C160-100F1 is offered in PDIP42, SDIP42, PLCC44 and SO44 packages.
Parametrics
M27C160-100F1 absolute maximum ratings: (1)Ambient Operating Temperature:–40 to 125℃; (2)Temperature Under Bias: –50 to 125℃; (3)Storage Temperature: –65 to 150℃; (4)Input or Output Voltage (except A9): –2 to 7 V; (5)VCC Supply Voltage: –2 to 7 V; (6)A9 Voltage: –2 to 13.5 V; (7)VPP Program Supply Voltage: –2 to 14 V.
Features
M27C160-100F1 features: (1)5V ± 10% supply voltage in read operation; (2)access time: 50ns; (3)byte-wide or word-wide configurable; (4)16 Mbit mask ROM replacement; (5)low power consumption; (6)programming voltage: 12.5V ± 0.25V; (7)programming time: 50μs/word; (8)electronic signature.
