Product Summary

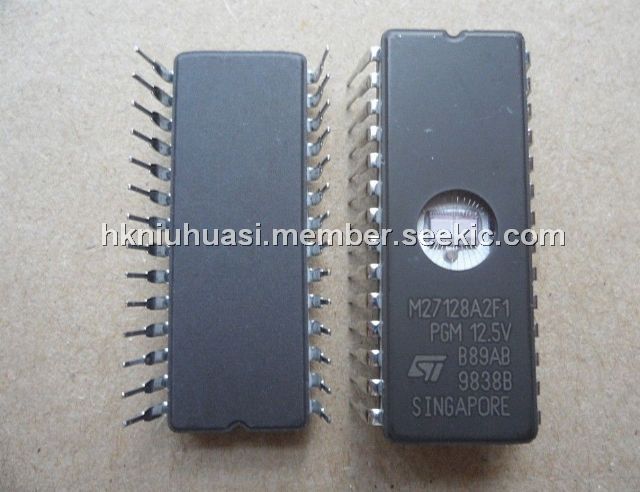

The M27128A2F1 is a 131,072 bit UV erasable and electrically programmable memory EPROM. It is organized as 16,384 words by 8 bits. The M27128A2F1 is housed in a 28 Pin Window Ceramic Frit-Seal Dual-in-Line package. The transparent lid allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern of the M27128A2F1 can then be written to the device by following the programming procedure.
Parametrics
M27128A2F1 absolute maximum ratings: (1)TA, Ambient Operating Temperature: grade 1: 0 to 70 ℃, grade 6: –40 to 85 ℃; (2)TBIAS, Temperature Under Bias: grade 1: –10 to 80 ℃, grade 6: –50 to 95 ℃; (3)TSTG, Storage Temperature: –65 to 125 ℃; (4)VIO, Input or Output Voltages: –0.6 to 6.25 V; (5)VCC, Supply Voltage: –0.6 to 6.25 V; (6)VPP, Program Supply: –0.6 to 14 V; (7)VA9, A9 Voltage: –0.6 to 13.5 V.
Features
M27128A2F1 features: (1)fast access time: 200ns; (2)extended temperature range; (3)single 5 V supply voltage; (4)low standby current: 40mA max; (5)TTL compatible during read and program; (6)fast programming algorithm; (7)electronic signature; (8)programming voltage: 12V.
Diagrams
 |
 M271 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
M27128A |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
M27128A-2F1 |
STMicroelectronics |
EPROM DISC BY STM 6/01 DIP-28 16KX8 200NS |
Data Sheet |
Negotiable |
|
||||
|
M27128AF1 |
STMicroelectronics |
EPROM DISC BY STM 6/01 DIP-28 16KX8 250NS |
Data Sheet |
Negotiable |
|
||||
|
M2716 |
Other |
|
Data Sheet |
Negotiable |
|
||||
