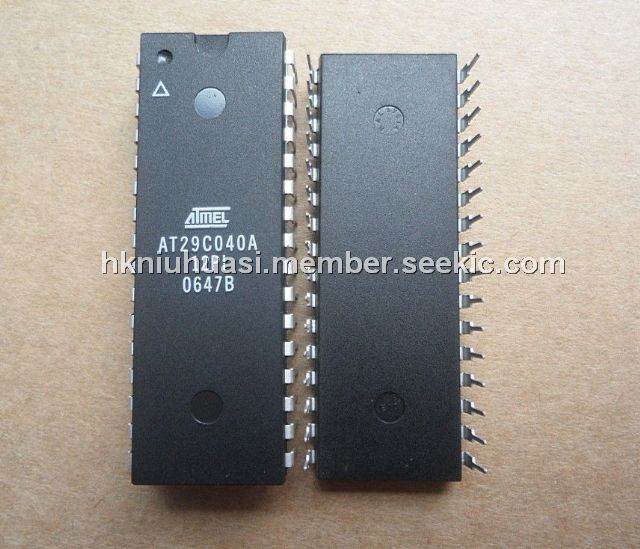

AT29C040A-12PI

5-volt-only in-system Flash, -0.6V to +6.25V, 32DIP, Hardware and Software Data Protection

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.40~4.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.40~4.40

PartNumber:: AT29C040A-12PI

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Becky's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-12

From Other Seller

Part Number:AT29C040A-12PI
US $3.40 - 4.40
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT29C040A-12PI is a 5-volt-only in-system Flash Programmable and Erasable Read Only Memory (PEROM). Its 4 megabits of memory is organized as 524,288 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS EEPROM technology, the AT29C040A-12PI offers access times up to 100 ns, and a low 220 mW power dissipation. When the device is deselected, the CMOS standby current is less than 100 mA. The AT29C040A-12PI endurance is such that any sector can typically be written to in excess of 10,000 times. The programming algorithm is compatible with other devices in Atmel’s 5-volt-only Flash family.

Parametrics

AT29C040A-12PI absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on OE with Respect to Ground: -0.6V to +13.5V.

Features

AT29C040A-12PI features: (1)Fast Read Access Time - 100 ns; (2)5-Volt-Only Reprogramming; (3)Sector Program Operation: Single Cycle Reprogram (Erase and Program), 2048 Sectors (256 bytes/sector), Internal Address and Data Latches for 256-Bytes; (4)Internal Program Control and Timer; (5)Hardware and Software Data Protection; (6)Two 16 KB Boot Blocks with Lockout; (7)Fast Sector Program Cycle Time - 10 ms; (8)DATA Polling for End of Program Detection; (9)Low Power Dissipation: 40 mA Active Current, 100 μA CMOS Standby Current; (10)Typical Endurance > 10,000 Cycles; (11)Single 5V ± 10% Supply; (12)CMOS and TTL Compatible Inputs and Outputs.
