Product Summary

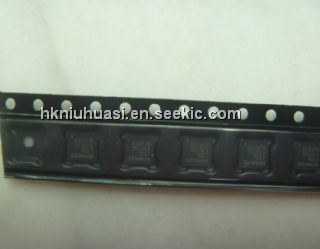

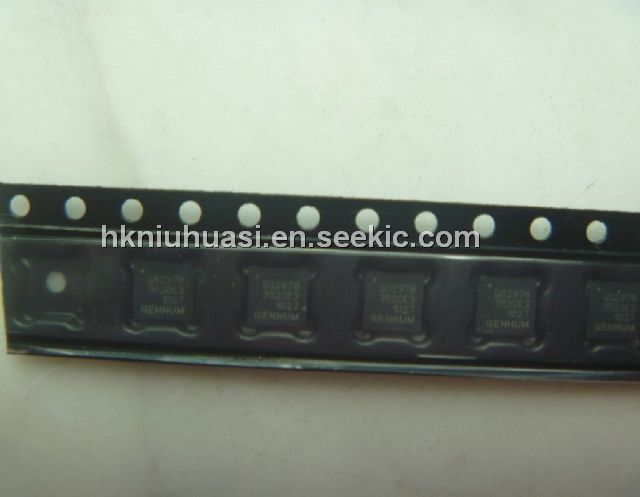

The GS2978-CNE3 is a cable driver which has a high-speed BiCMOS integrated circuit designed to drive one or two 75Ω co-axial cables. The GS2978-CNE3 may drive data rates up to 2.97Gb/s and provides two selectable slew rates in order to achieve compliance to SMPTE 424M, SMPTE 259M, SMPTE 344M and SMPTE 292M. The GS2978-CNE3 accepts a LVPECL level differential input that may be AC coupled. External biasing resistors at the inputs are not required. Power consumption is typically 168mW using a 3.3V power supply. The GS2978-CNE3 is Pb-free, and the encapsulation compound does not contain halogenated flame retardant.
Parametrics
GS2978-CNE3 absolute maximum ratings: (1)Supply Voltage: -0.5V to 3.6 VDC; (2)Input ESD Voltage: 4kV; (3)Storage Temperature Range: -50℃ < Ts < 125℃; (4)Input Voltage Range (any input): -0.3 to (VCC +0.3)V; (5)Operating Temperature Range: 0℃ to 70℃; (6)Solder Reflow Temperature: 260℃.
Features
GS2978-CNE3 features: (1)Dual coaxial cable driving outputs with selectable slew rate; (2)50Ω differential PECL input; (3)Pb-free and RoHS compliant; (4)Seamless interface; (5)Single 3.3V power supply operation; (6)Operating temperature range: 0℃ to 70℃.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 GS2978-CNE3 |
|
RF, RFID, WIRELESS |
Data Sheet |
|
|
||||||||||
