Product Summary
The Intersil CP80C88-2 high performance 8/16-bit CMOS CPU is manufactured using a self-aligned silicon gate CMOS process (Scaled SAJI IV). Two modes of operation, MINimum for small systems and MAXimum for larger applications such as multiprocessing, allow user configuration to achieve the highest performance level. Full TTL compatibility (with the exception of CLOCK) and industry-standard operation allow use of existing NMOS 8088 hardware and Intersil CMOS peripherals.
Parametrics
CP80C88-2 absolute maximum ratings: (1)Supply Voltage: +8.0V; (2)Input, Output or I/O Voltage: GND -0.5V to VCC +0.5V; (3)ESD Classification: Class 1.
Features
CP80C88-2 features: (1)Compatible with NMOS 8088; (2)Direct Software Compatibility with 80C86, 8086, 8088; (3)8-Bit Data Bus Interface; 16-Bit Internal Architecture; (4)Completely Static CMOS Design: DC: 8MHz (80C88-2); (5)Low Power Operation: ICCSB: 500uA Maximum; ICCOP: 10mA/MHz Maximum; (6)1 Megabyte of Direct Memory Addressing Capability; (7)24 Operand Addressing Modes; (8)Bit, Byte, Word, and Block Move Operations; (9)8-Bit and 16-Bit Signed/Unsigned Arithmetic; (10)Bus-Hold Circuitry Eliminates Pull-up Resistors; (11)Wide Operating Temperature Ranges: 0℃ to + 70℃.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

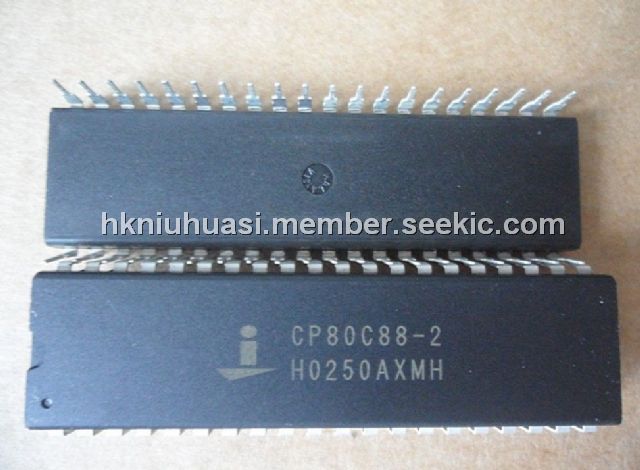

 CP80C88-2 |
Intersil |
IC CPU 8/16BIT 5V 8MHZ 40-DIP |
Data Sheet |
Negotiable |
|
||||||
|
CP80C88-2Z |
|
IC PWM CONTROLLER |
Data Sheet |
|
|
||||||
