Product Summary
The EG80296SA50 is a 16-bit MCS 96 microcontroller. The EG80296SA50 features 6 Mbytes of linear address space, a demultiplexed bus, and a chip-select unit. The external bus can dynamically switch between multiplexed and demultiplexed operation. The EG80296SA50 has hardware and instructions to support various digital signal processing algorithms.
Parametrics
EG80296SA50 absolute maximum ratings: (1)Storage Temperature: –60 to +150℃; (2)Supply Voltage with Respect to VSS:–0.5 V to +7.0 V; (3)Power Dissipation: 1.5 W.
Features
EG80296SA50 features: (1)50 MHz Operation; (2)6 Mbytes of Linear Address Space; (3)512 Bytes of Register RAM; (4)2 Kbytes of Code/Data RAM; (5)Register-register Architecture; (6)Footprint and Functionally Compatible Upgrade for the 8XC196NP and 80C196NU; (7)Optional Phase-locked Loop (PLL) Circuitry with 2x or 4x Clock Multiplier; (8)32 I/O Port Pins; (9)19 Interrupt Sources, 14 with Programmable Priorities; (10)4 External Interrupt Pins and NMI Pin; (11)2 Flexible 16-bit Timer/Counters with Quadrature Counting Capability; (12)3 Pulse-width Modulator (PWM) Outputs with High Drive Capability; (13)Full-duplex Serial Port with Dedicated Baud-rate Generator.

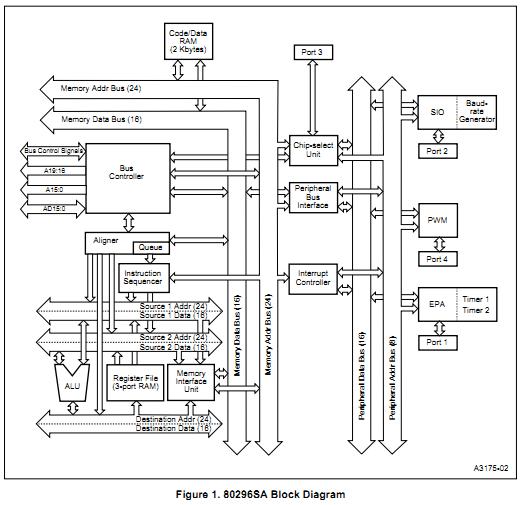

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

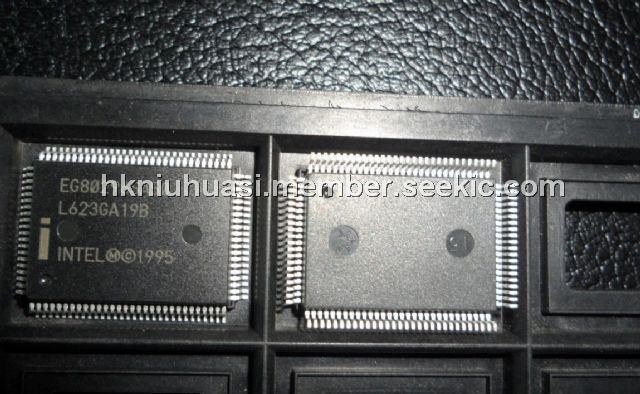

 EG80296SA50 |
|
IC MPU 16BIT 5V 50MHZ 100QFP |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
EG80296SA40 |
|
IC MPU 16-BIT 5V 40MHZ 100-QFP |
Data Sheet |
Negotiable |
|
||||
|
EG80296SA50 |
|
IC MPU 16BIT 5V 50MHZ 100QFP |
Data Sheet |
Negotiable |
|
||||
 |
