Product Summary

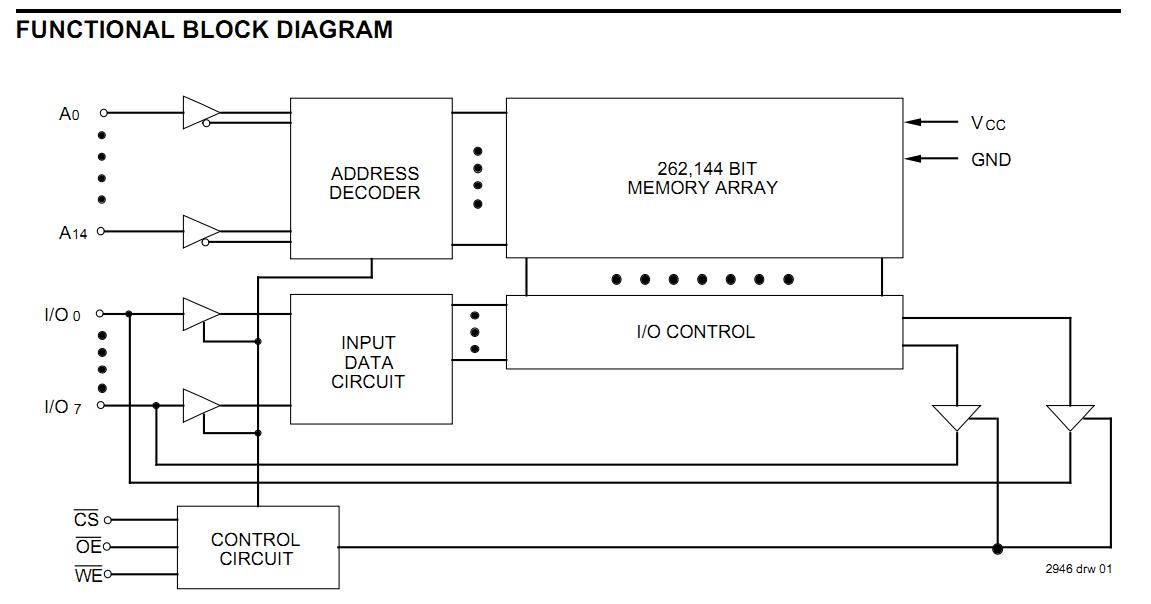

The IDT71256L100DB is a 262,144-bit high-speed static RAM organized as 32K x 8. It is fabricated using IDT’s high-performance, high-reliability CMOS technology. Address access times as fast as 20ns are available with power consumption of only 350mW (typ.). The IDT71256L100DB also offers a reduced power standby mode. When CS goes HIGH, the circuit will automatically go to, and remain in, a low-power standby mode as long as CS remains HIGH. In the full standby mode, the IDT71256L100DB consumes less than 15µW, typically. This capability of the IDT71256L100DB provides significant system level power and cooling savings. The low-power (L) version also offers a battery backup data retention capability where the circuit typically consumes only 5µW when operating off a 2V battery.

Parametrics

IDT71256L100DB absolute maximum ratings: (1)VTERM, Terminal Voltage with Respect to GND: –0.5 to +7.0V; (2)TA, Operating Temperature: 0 to +70℃; (3)TBIAS, Temperature Under Bias: –55 to +125℃; (4)TSTG, Storage Temperature: –55 to +125℃; (5)PT, Power Dissipation: 1.0W; (6)IOUT, DC Output Current: 50mA.

Features

IDT71256L100DB features: (1)High-speed address/chip select time: Military: 25/30/35/45/55/70/85/100/120/150ns (max.); Commercial: 20/25/35/45ns (max.) Low Power only; (2)Low-power operation; (3)Battery Backup operation — 2V data retention; (4)Produced with advanced high-performance CMOS technology; (5)Input and output directly TTL-compatible; (6)Available in standard 28-pin (300 or 600 mil) ceramic DIP, 28-pin (600 mil) plastic DIP, 28-pin (300 mil) SOJ and 32-pin LCC; (7)Military product compliant to MIL-STD-883, Class B.
