Product Summary
The TDA6107JF-N3 is a triple video output amplifier which includes three video output amplifiers and is intended to drive the three cathodes of a colour CRT directly. The device is contained in a plastic DIL-bent-SIL 9-pin medium power (DBS9MPF) package, and uses high-voltage DMOS technology. To obtain maximum performance, the TDA6107JF-N3 amplifier should be used with black-current control.
Parametrics
TDA6107JF-N3 characteristics: (1)quiescent supply current: 6.6 mA; (2)internal reference voltage (input stage): 2.5V; (3)input resistance: 3.6kΩ; (4)maximum peak output current: 20mA; (5)small signal bandwidth: 5.5MHz.
Features
TDA6107JF-N3 features: (1)Typical bandwidth of 5.5 MHz for an output signal of 60 V (p-p); (2)High slew rate of 900 V/ms; (3)No external components required; (4)Very simple application; (5)Single supply voltage of 200 V; (6)Internal reference voltage of 2.5 V; (7)Fixed gain of 50; (8)Black-Current Stabilization (BCS) circuit with voltage window from 1.8 to 6 V and current window from -100 mA to 10 mA; (9)Thermal protection; (10)Internal protection against positive flashover discharges appearing on the CRT.

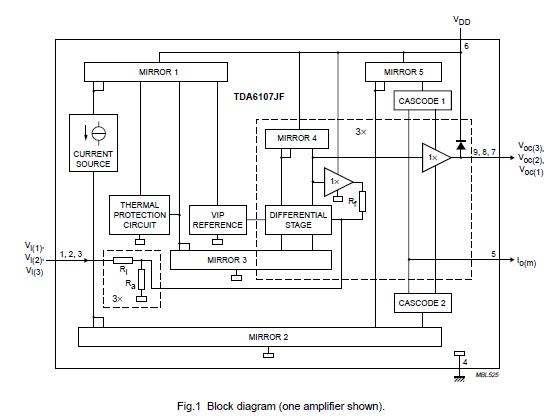

Diagrams
