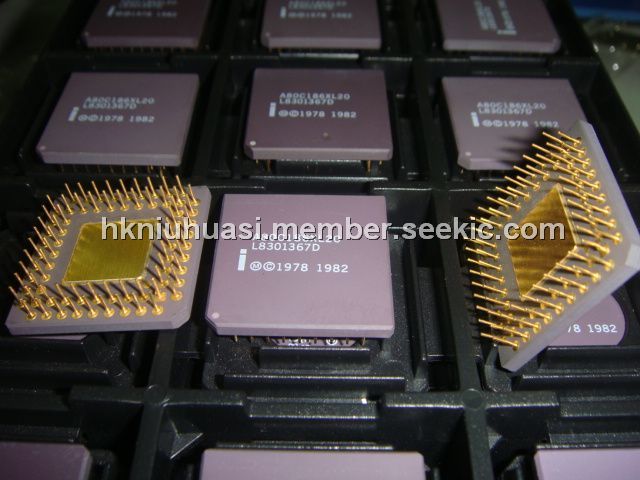

A80C186XL20

16-bit, high-integration embedded processor, 20 MHz, Low Power, 1 MByte Memory, 64 Kbyte I/O

Rated 5 Rating 5 | reviews | Write a review

Price:: US $25.00~35.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $25.00~35.00

PartNumber:: A80C186XL20

Brand:: Intel Corporation - Intel | Pack: PGA | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Becky's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-20

From Other Seller

Part Number:A80C186XL20
US $25.00 - 35.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The following Functional Description describes the base architecture of the A80C186XL20. The A80C186XL20 is a very high integration 16-bit microprocessor. It combines 15±20 of the most common microprocessor system components onto one chip. The A80C186XL20 is object code compatible with the 8086/8088 microprocessors and adds 10 new instruction types to the 8086/8088 instruction set. The A80C186XL20 has two major modes of operation, Compatible and Enhanced. In Compatible Mode the A80C186XL20 is completely compatible with NMOS 80186, with the exception of 8087 support. The Enhanced mode adds three new features to the system design. These are Power-Save control, Dynamic RAM refresh, and an asynchronous Numerics Coprocessor interface (A80C186XL20 only).

Parametrics

A80C186XL20 absolute maximum ratings: (1)Ambient Temperature under Bias: 0℃ to a70℃; (2)Storage Temperature: -65℃ to a150℃; (3)Voltage on Any Pin with Respect to Ground: -1.0V to a7.0V; (4)Package Power Dissipation: 1W.

Features

A80C186XL20 features: (1)Low Power, Fully Static Versions of 80C186/80C188; (2)DStatic, Modular CPU; (3)DClock Generator; (4)D2 Independent DMA Channels; (5)DSystem-Level Testing Support (High; (6)Impedance Test Mode); (7)Completely Object Code Compatible with Existing 8086/8088 Software and Has 10 Additional Instructions over 8086/8088; (8)Direct Addressing Capability to; (9)1 MByte Memory and 64 Kbyte I/O; (10)Available in Extended Temperature Range (-40℃ to +85℃).
