Product Summary

The PKL4110PIT is a DC/DC converter.

Parametrics

PKL4110PIT absolute maximum ratings: (1)Tref, Operating Temperature (see Thermal Consideration section): -40 to +100 ℃; (2)TS, Storage temperature: -55 to +125 ℃; (3)VI, Input voltage: -0.5 to +80 V; (4)Viso, Isolation voltage (input to output test voltage): 1500 Vdc max; (5)Vtr, Input voltage transient (Tp 100 ms): 100 V max; (6)VRC, Remote Control pin voltage(see Operating Information section): Positive logic option: -0.5 to 15 V; Negative logic option: -0.5 to 15 V; (7)Vadj, Adjust pin voltage (see Operating Information section): -0.5 to 2xVoi V.

Features

PKL4110PIT features: (1)“The double P” extended Half-brick 61.5 x 61.0 x 12.7 mm (2.42 x 2.40 x 0.50 in.); (2)High efficiency, typ. 88 % at 1.8 V out full load; (3)1500 Vdc input to output isolation; (4)Meets isolation requirements equivalent to basic insulation according to IEC/EN/UL 60950; (5)Low output ripple, 60 mVp-p typ.

Diagrams

PKL4110PIT Fundamental Circuit Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

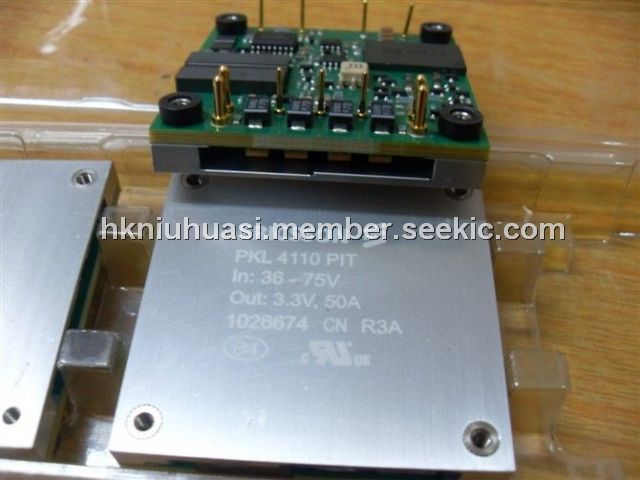

PKL4110PIT
PKL4110PIT
Ericsson Power Modules
DC/DC Converters 3.3 Vdc 50A Iso Input 36-75V 165W
Data Sheet
Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PKL4110PIT
PKL4110PIT
Ericsson Power Modules
DC/DC Converters 3.3 Vdc 50A Iso Input 36-75V 165W
Data Sheet
Negotiable
PKL4219APIT
PKL4219APIT
Ericsson Power Modules
DC/DC Converters 2.5 Vdc 80A Iso Input 36-75V 200W
Data Sheet
Negotiable
PKL4313PIT
PKL4313PIT
Ericsson Power Modules
DC/DC Converters 12Vdc 25A Isolated Input 36 -75V 300W
Data Sheet
Negotiable
PKL4119APIT
PKL4119APIT
Ericsson Power Modules
DC/DC Converters 2.5 Vdc 60A Iso Input 36-75V 150W
Data Sheet
Negotiable
PKL4110APIT
PKL4110APIT
Ericsson Power Modules
DC/DC Converters 3.3 Vdc 60A Iso Input 36-75V 198W
Data Sheet
Negotiable
PKL4311PIT
PKL4311PIT
Ericsson Power Modules
DC/DC Converters 5Vdc 60A Isolated Input 36 -75V 300W
Data Sheet
Negotiable
