Product Summary
The CS5336-KP is a complete analog-to-digital converter for stereo digital audio systems. It performs sampling, analog-to-digital conversion and anti-aliasing filtering, generating 16-bit values for both left and right inputs in serial form. The output word rate can be up to 50 kHz per channel. The ADC CS5336-KP uses delta-sigma modulation with 64X oversampling, followed by digital filtering and decimation, which removes the need for an external anti-alias filter. The CS5336-KP has an SCLK which clocks out data on rising edges. The device has a filter passband of dc to 22kHz.
Parametrics
CS5336-KP absolute maximum ratings: (1)DC Power Supplies: positive analog, VA+: -0.3V to +6.0 V; negative analog, VA-: 0.3 to -6.0v; positive logic, VL+: -0.3 to (VA+)+0.3 v; positive digital, VD+: -0.3 to 6v; (2)Input Current, Any Pin Except Supplies: ± 10 mA max; (3)Analog Input Voltage (AIN and ZERO pins): (VA-)-0.3 V to (VA+)+0.3 V ; (4)Digital Input Voltage: -0.3 V to (VD+)+0.3 V; (5)Storage Temperature: -55 to +125℃; (6)Ambient Temperature (power applied): -65 to +150℃.
Features
CS5336-KP features: (1)Complete CMOS Stereo A/D System. Delta-Sigma A/D Converters. Digital Anti-Alias Filtering. S/H Circuitry and Voltage Reference; (2)Adjustable System Sampling Rates including 32kHz, 44.1 kHz & 48kHz; (3)Low Noise and Distortion>90 dB S/(N+D); (4)Internal 64X Oversampling; (5)Linear Phase Digital Anti-Alias Filtering: 0.01dB Passband Ripple, 80dB Stopband Rejection; (6)Low Power Dissipation: 400 mW. Power-Down Mode for Portable Applications; (7)Evaluation Board Available.

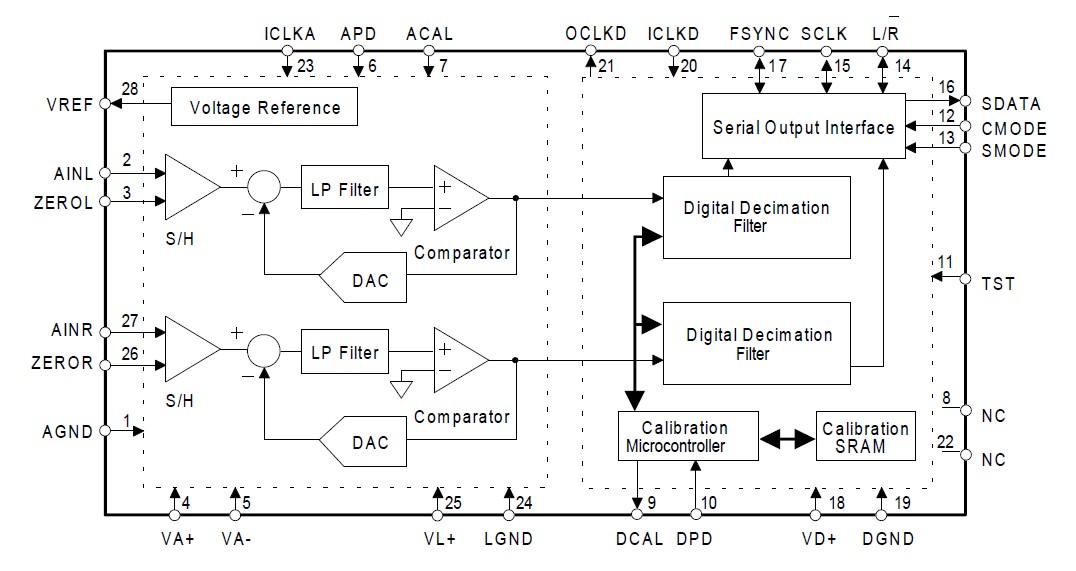

Diagrams
 |
