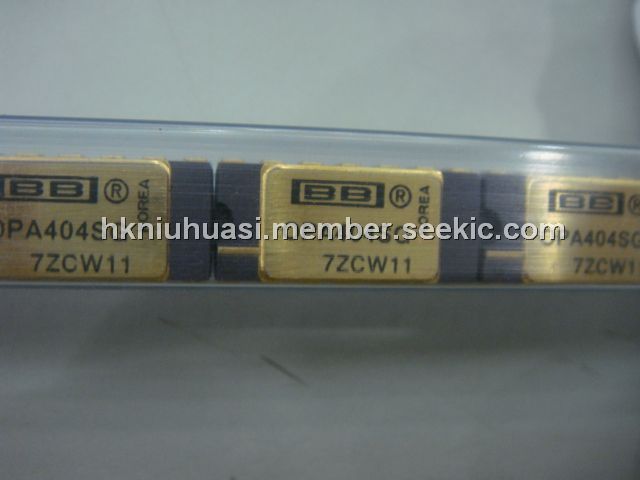

OPA404AG

AUCDIP-14, high-speed, precision difet, operational amplifier, 6.4MHz, 35V/ms, ±4pA, High slew rate, 1000mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $11.85~13.52 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $11.85~13.52

PartNumber:: OPA404AG

Brand:: Burr-Brown Corporation - BB | Pack: DIP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Becky's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-27

From Other Seller

Part Number:OPA404AG
US $11.85 - 13.52
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The OPA404AG is a quad high-speed precision difet operational amplifier. The OPA404AG is a high performance monolithic Difet (dielectrically-isolated FET) quad operational amplifier. The OPA404AG offers an unusual combination of verylow bias current together with wide bandwidth and fast slew rate. Noise, bias current, voltage offset, drift, and speed are superior to BIFET amplifiers. Laser-trimming of thin-film resistors of the OPA404AG gives very low offset and drift the best available in a quad FET op amp.

Parametrics

OPA404AG absolute maximum ratings: (1)Supply: ±18VDC; (2)Internal Power Dissipation: 1000mW; (3)Differential Input Voltage: ±36VDC; (4)Input Voltage Range: ±18VDC; (5)Storage Temperature Range: P, U = –40℃/+125℃, G = –65℃/+150℃; (6)Operating Temperature Range: P, U = –25℃/+85℃, G = –55℃/+125℃; (7)Lead Temperature (soldering, 10s): 300℃; (8)SOIC (soldering, 3s): +260℃; (9)Output Short-Circuit Duration: Continuous; (10)Junction Temperature: +175℃.

Features

OPA404AG features: (1)Wide bandwidth: 6.4MHz; (2)High slew rate: 35V/ms; (3)Low offset: ±750mV max; (4)Low bias current: ±4pA max; (5)Low settling: 1.5ms to 0.01%; (6)Standard quad pinout.
