Product Summary

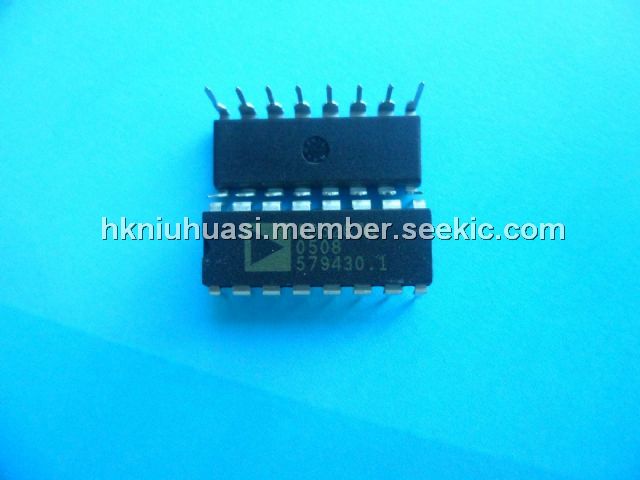

The AD526JN is a single-ended, monolithic software programmable gain amplifier (SPGA) that provides gains of 1, 2, 4, 8 and 16. It is complete, including amplifier, resistor network and TTL-compatible latched inputs, and requires no external components. Low gain error and low nonlinearity make the AD526JN ideal for precision instrumentation applications requiring programmable gain. The small signal bandwidth is 350 kHz at a gain of 16. In addition, the AD526JN provides excellent dc precision. The FET-input stage results in a low bias current of 50 pA.
Parametrics
AD526JN specifications: (1)Input Offset Voltage (VS ± 10%): 80V min; (2)RATED OUTPUT Voltage: ±10 min, ±12 typ.; (3)Specified performance temperature: 0 to +70℃; (4)Storage temperature: -65 to +125℃; (5)Operating power range: ±4.5 to ±16.5V; (6)Positive supply current: 10 typ, 14 max A.
Features
AD526JN features: (1)Digitally Programmable Binary Gains from 1 to 16; (2)Two-Chip Cascade Mode Achieves Binary Gain from 1 to 256; (3)Gain Error: 0.01% Max, Gain = 1, 2, 4 (C Grade); 0.02% Max, Gain = 8, 16 (C Grade); 0.5 ppm/℃ Drift Over Temperature; (4)Fast Settling Time; (5)10 V Signal Change: 0.01% in 4.5 μs (Gain = 16); (6)Gain Change: 0.01% in 5.6 μs (Gain = 16); (7)Low Nonlinearity: 60.005% FSR Max (J Grade); (8)Excellent DC Accuracy: Offset Voltage: 0.5 mV Max (C Grade); ; (9)Offset Voltage Drift: 3 μV/℃ (C Grade); (10)TTL-Compatible Digital Inputs.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD526JN |
|
IC AMP PGA 10MA 16DIP |
Data Sheet |
|
|
||||||||||||||||
|
AD526JNZ |
|
IC AMP PGA 10MA 16DIP |
Data Sheet |
|
|
||||||||||||||||
