Product Summary

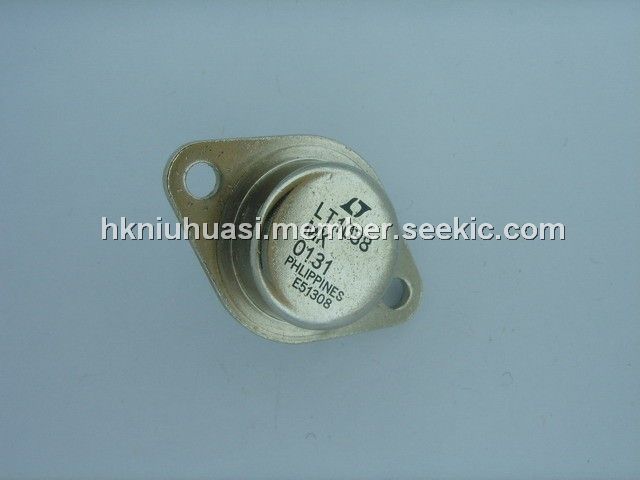

The LT1038MK is a three terminal regulator which is capable of providing in excess of 10A output current over 1.2V to 32V range. The device is packaged in a standard T0-3 power package and is plug-in compatible with industry standard adjustable regulators, such as the LM117 and LM138. Also, the LT1038MK is a functional replacement for the LM396. The applications of the LT1038MK include System Power Supplies, High Power Linear Regulator, Battery Chargers, Power Driver and Constant Current Regulator.
Parametrics
LT1038MK absoltue maximum ratings: (1)Power Dissipation: Internally Limited; (2)Input to Output Voltage Differential: 35V; (3)Operating Junction Temperature Range: –55 to 150℃; (4)Storage Temperature Range: –65 to 150℃; (5)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1038MK features: (1)Guaranteed 0.8% Initial Tolerance; (2)Guaranteed 0.4% Load Regulation; (3)Guaranteed 10A Output Current; (4)100% Thermal Limit Burn-In; (5)24A Transient Output Current; (6)Standard Adjustable Pinout; (7)Operates to 35V.

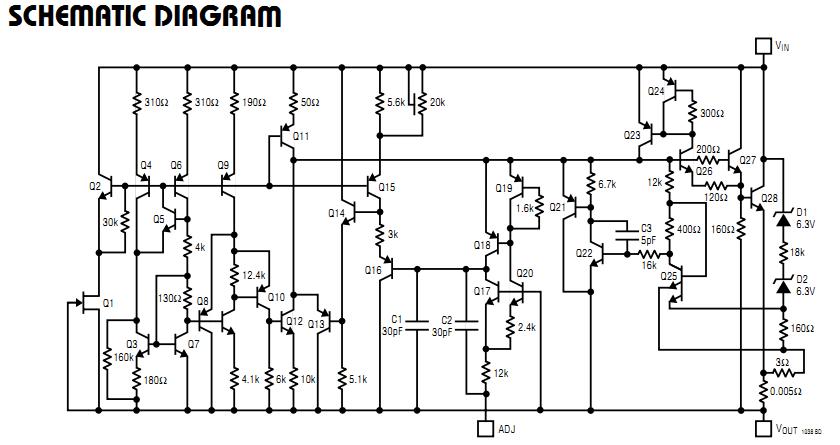

Diagrams
 |
