Product Summary

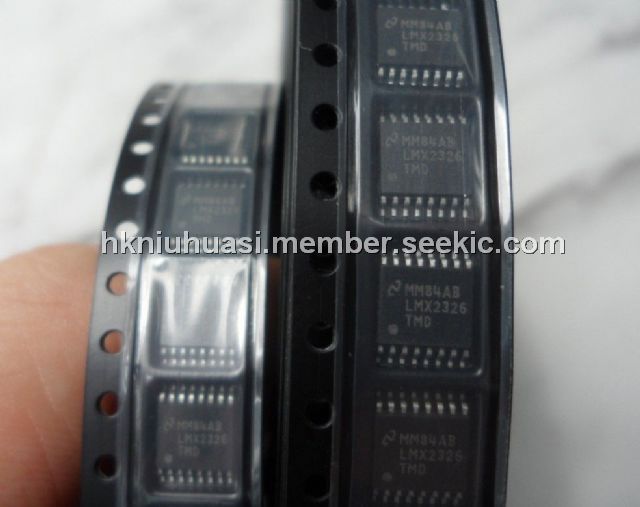

The LMX2326TMD is a monolithic, integrated frequency synthesizer with prescalers that are designed to be used to generate a very stable low noise signal for controlling the local oscillator of an RF transceiver. It is fabricated using Nationals ABiC V silicon BiCMOS 0.5μ process. The LMX2326TMD has a 32/33 dual modulus prescaler. The device employs a digital phase locked loop technique. When combined with a high quality reference oscillator and loop filter, the LMX2326TMD provides the feedback tuning voltage for a voltage controlled oscillator to generate a low phase noise local oscillator signal. Serial data is transferred into the device via a three wire interface (Data, Enable, Clock). Supply voltage can range from 2.3V to 5.5V. The LMX2326TMD synthesizer is available in a 16-pin TSSOP surface mount plastic package.
Parametrics
LMX2326TMD absolute maximum ratings: (1)Power Supply Voltage: VCC1: -0.3V to +6.5V; VCC2: -0.3V to +6.5V; Vp: -0.3V to +6.5V; (2)Voltage on Any Pin with GND = 0V (VI): -0.3V to VCC + 0.3V; (3)Storage Temperature Range (TS): -65℃ to +150℃; (4)Lead Temperature (TL)(solder, 4 sec.): +260℃.
Features
LMX2326TMD features: (1)2.3V to 5.5V operation; (2)Ultra low current consumption; (3)2.5V VCC JEDEC standard compatible; (4)Programmable or logical power dowmode: ICC = 1μA typical at 3V; (5)Dual modulus prescaler: 32/33; (6)Selectable charge pump TRI-STATE mode; (7)Selectable FastLock mode with timeout counter; (8)MICROWIRE Interface; (9)Digital Lock Detect.
Diagrams
 |
