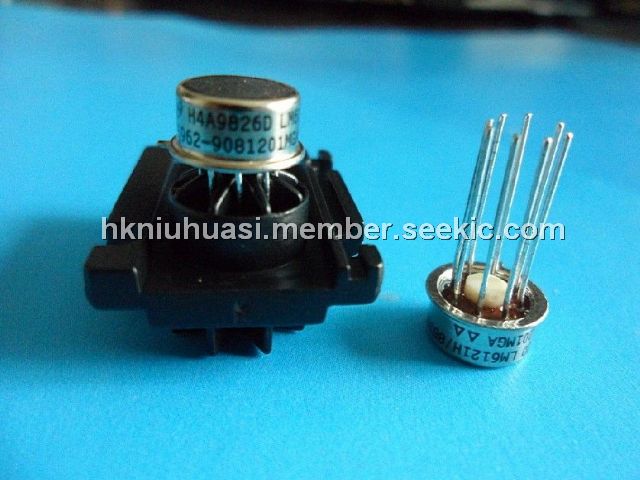

5962-9081201MGA

High Speed Buffer, CAN8, 800 V/μs slew rate, 50 MHz Wide bandwidth, 5V to ±15V operation guaranteed

Rated 5 Rating 5 | reviews | Write a review

Price:: US $85.72~93.25 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $85.72~93.25

PartNumber:: 5962-9081201MGA

Brand:: National Semiconductor - NS | Pack: CAN | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Becky's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-14

From Other Seller

Part Number:5962-9081201MGA
US $85.72 - 93.25
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The high speed unity 5962-9081201MGA gains buffer slew at 800 V/μs and has a small signal bandwidth of 50 MHz while driving a 50W load. They can drive ±300 mA peak and do not oscillate while driving large capacitive loads. The 5962-9081201MGA is a monolithic IC which offers performance similar to the LH0002 with the additional features of current limit and thermal shutdown. The 5962-9081201MGA is built with National VIP. (Vertically Integrated PNP) process which provides fast PNP transistors that are true complements to the already fast NPN devices. This advanced junction-isolated process delivers high speed performance without the need for complex and expensive dielectric isolation.

Parametrics

5962-9081201MGA absolute maximum ratings: (1)Supply Voltage: 36V; (2)Input to Output Voltage: ±7V; (3)Input Voltage: ±Vsupply; (4)Output Short-Circuit to GND: Continuous; (5)Storage Temperature Range: -65℃ to +150℃; (6)Lead Temperature: 260℃; (7)ESD Tolerance: ±2000V.

Features

5962-9081201MGA features: (1)High slew rate: 800 V/μs; (2)Wide bandwidth: 50 MHz; (3)Slew rate and bandwidth 100% tested; (4)Peak output current: ±300 mA; (5)High input impedance: 5 MW; (6)LH0002H picompatible; (7)No oscillations with capacitive loads; (8)5V to ±15V operatioguaranteed; (9)Current and thermal limiting; (10)Fully specified to drive 50W lines.
