Product Summary
The LA42102L-E is 10W 2-channel AF power amplifier intended for televisions.
Parametrics
LA42102L-E absolute maximum ratings: (1)Maximum supply voltage: 17 V; (2)Allowable power dissipation: 15 W; (3)Maximum junction temperature: 150℃; (4)Thermal resistance: 3℃/W; (5)Operating temperature: -25 to +75℃; (6)Storage temperature: -40 to +150℃.
Features
LA42102L-E features: (1)10W × 2 channels (VCC = 14V, RL = 8Ω).; (2)Standby function.; (3)Built-in mute function.; (4)Built-in various protection circuit (short to VCC/short to groumd/load shorting/overheating).

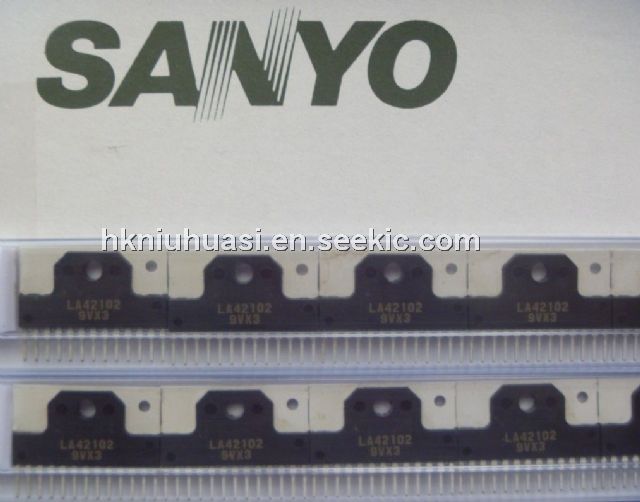

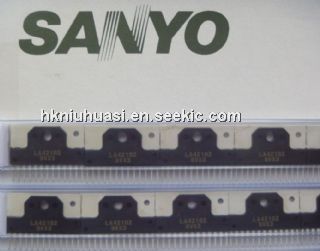

Diagrams
