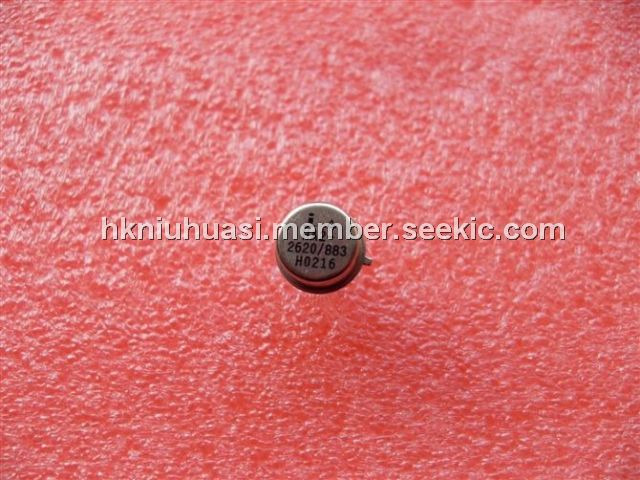

HA2-2620-883

bipolar operational amplifier, 500MΩ, 1nA, 100MHz, Slew Rate 35V/μs

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.45~7.32 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $6.45~7.32

PartNumber:: HA2-2620-883

Brand:: Intersil Corporation - Intersil | Pack: CAN | D/C: 02+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Becky's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-27

From Other Seller

Part Number:HA2-2620-883
US $6.45 - 7.32
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The HA2-2620-883 is a bipolar operational amplifier that features very high input impedance (500MΩ, HA-2620) coupled with wideband AC performance. The high resistance of the input stage is complemented by low offset voltage (0.5mV) and low bias and offset current (1nA) to facilitate accurate signal processing. Input offset of the HA2-2620-883 can be reduced further by means of an external nulling potentiometer. The 100MHz gain bandwidth product, 35V/μs slew rate and 150kV/V open loop gain enables the HA2-2620-883 to perform high gain amplification of very fast, wideband signals. These dynamic characteristics, coupled with fast settling times, make the amplifier ideally suited to pulse amplification designs as well as high frequency (e.g., video) applications. The frequency response of the amplifier HA2-2620-883 can be tailored to exact design requirements by means of an external bandwidth control capacitor connected from the Comp pin to GND.

Parametrics

HA2-2620-883 absolute maximum ratings: (1)Supply Voltage (Between V+ and V- Terminals): 45V; (2)Differential Input Voltage: 12V; (3)Peak Output Current: Full Short Circuit Protection.

Features

HA2-2620-883 features: (1)Gain Bandwidth Product (AV ≥ 5): 100MHz; (2)High Input Impedance: 500MΩ; (3)Low Input Bias Current: 1nA; (4)Low Input Offset Current: 1nA; (5)Low Input Offset Voltage: 0.5mV; (6)High Gain: 150kV/V; (7)Slew Rate: 35V/μs; (8)Output Short Circuit Protection; (9)Compensation Pin for Unity Gain Capability.
