Product Summary

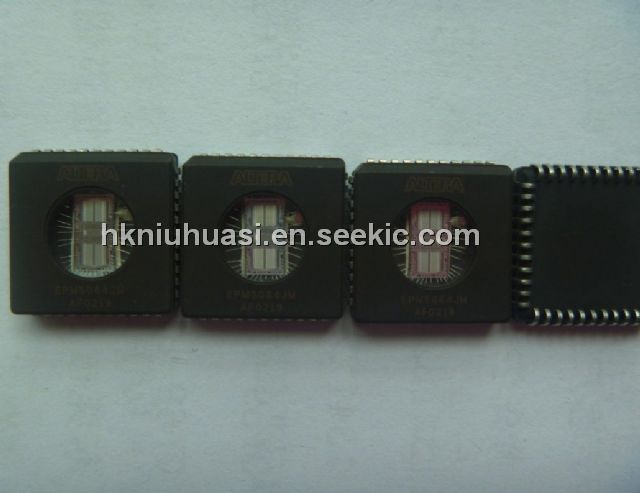

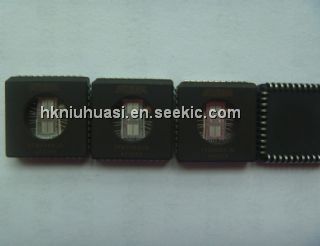

The EPM5064 is a High-Speed, High-Density MAX 5000 Device. It represents a revolutionary step in programmable logic. It combines innovative architecture and state-of-the-art process to offer optimum performance, logic density, flexibility, and the highest speeds and densities available in general-purpose reprogrammable logic.
Parametrics
EPM5064JM absolute maximum ratings: (1)supply voltage: -2 to 7 V; (2)programming supply voltage: -2 to 13.5V; (3)DC input voltage: -2 to 7V; (4)DC current: 200mA; (5)power dissipation: 1000mW; (6)storage temperature: -65 to 150℃; (7)ambient temperature: -65 to 135℃; (8)junction temperature: 150℃.
Features
EPM5064JM features: (1)available in a wide variety of package; (2)high-complexity designs with true system clock rates up to 66MHz; (3)MAX 5000EPLDs provide 15-ns combinatorial delays, counler frequencies up to 100MHz.

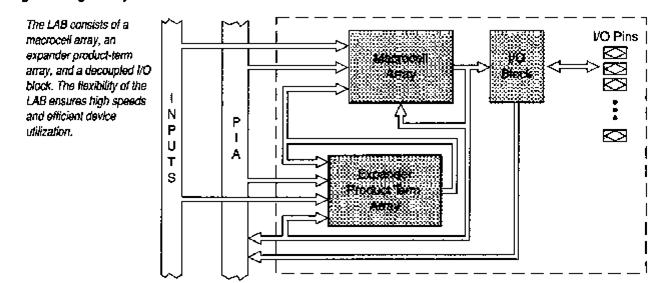

Diagrams
