Product Summary

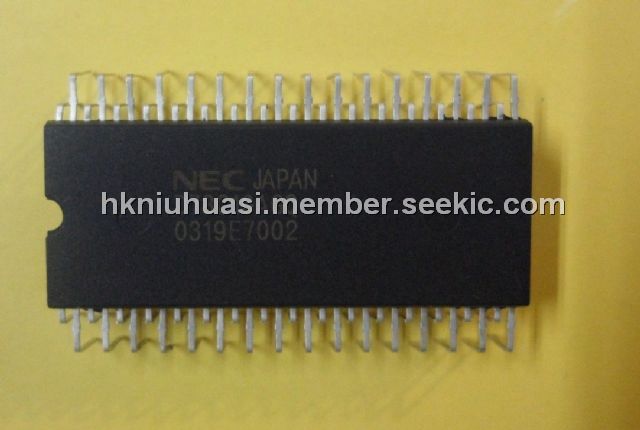

The D78C10AGQ is a CMOS 8-bit microprocessor. It is a ROM-less product of the μPD78C11A, and can directly address the external memory up to 64k bytes. It operated at low power consumption, because it has a CMOS construction. Also, the D78C10AGQ can hold data with low power consumption by using standby function.
Parametrics
D78C10AGQ absolute maximum ratings: (1)Power supply voltage: AVSS to VDD +0.5 V; (2)Input voltage: –0.5 to VDD +0.5 V; (3)Output voltage: VO –0.5 to VDD +0.5 V; (4)Output current low: Total of all output pins: 100 mA; (5)Output current high: Total of all output pins: –50 mA; (6)A/D converter reference input voltage: –0.5 to AVDD +0.3 V; (7)Operating ambient temperature: –40 to +85 ℃; (8)Storage temperature: –65 to +150 ℃.
Features
D78C10AGQ features: (1)Abundant 159 types of instructions : 87AD series instruction set, multiplication/division instructions, 16-bit operation instructions; (2)Instruction cycle : 0.8 ms (at 15 MHz operation); (3)On-chip ROM : 4096W×8 (μPD78C11A), 8192W×8 (μPD78C12A) Non (μPD78C10A); (4)On-chip RAM : 256W×8; (5)High-precision 8-bit A/D converter : 8 analog inputs; (6)General-purpose serial interface : Asynchronous, synchronous, I/O interface mode; (7)Multi-function 16-bit timer/event counter; (8)Two 8-bit timers; (9)I/O lines : 32 (μPD78C10A), 44 (μPD78C11A, 78C12A); (10)Interrupt function (external - 3, internal - 8) : Non-maskable interrupt × 1, maskable interrupt×10.
