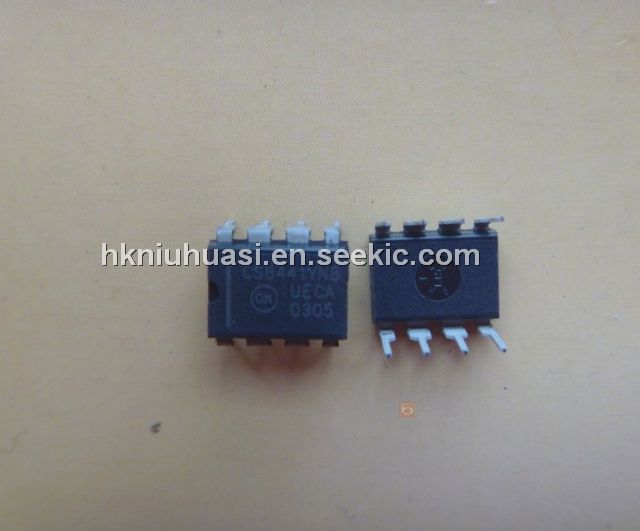

CS8441YN8

Stepper Motor Driver, 60 V, 2.0 kV, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.45~1.65 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	1.65 / Piece
50 ~ 500 :	1.50 / Piece
1000 ~ 2000 :	1.45 / Piece

PartNumber:: CS8441YN8

Brand:: ON Semiconductor - ON | Pack: DIP | D/C: 03+

Availability:: Supply Ability: 1/Year Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Becky's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-05

From Other Seller

Part Number:CS8441YN8
US $1.45 - 1.65
Quantity:

piece

Product Summary

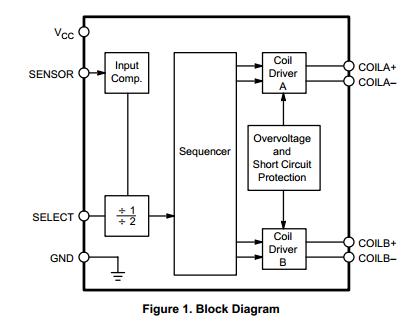

The CS8441YN8 is a Stepper Motor Driver that implements an H–Bridge design in order to drive two coils in an eight step sequence per revolution in the divide by 1 mode; 16 step sequence in the divide by 2 mode. The H–Bridge is capable of delivering 85 mA to the load. The sequencer insures that the odometer is monotonic. This sequencer is configured such that simultaneous conduction does not occur. Before each successive output sequence the part is taken through a state where both outputs are turned off individually. This tends to minimize the inductive kick back energy that the part must absorb. On–chip clamp diodes are across each output to protect the part from the kick back energy that it must absorb.

Parametrics

CS8441YN8 absolute maximum ratings: (1)Supply Voltage(Continuous): –0.5 to 24V; (2)Input Voltage (VIN): –0.3 to VCC + 0.3 V; (3)Storage Temperature Range: –65 to 150℃; (4)Junction Temperature Range: –40 to 150℃; (5)ESD (Human Body Model): 2.0 kV; (6)Lead Temperature Soldering: 260 peak℃.

Features

CS8441YN8 features: (1)No Cross–Conduction in Either H–Bridge; (2)Divide by 1 and Divide by 2 Modes; (3)Guaranteed Monotonic; (4)On–Chip Flyback Diodes; (5)Fault Protection.
