Product Summary
The BLM21AG601SN1D is an EMI suppression filter.
Parametrics
BLM21AG601SN1D specifications: (1)Manufacturer: Murata; (2)Product Category: EMI Filter Beads, Chokes & Arrays; (3)RoHS: Details; (4)Impedance: 600 Ohms; (5)Maximum DC Current: 200 mAmps; (6)Maximum DC Resistance: 0.3 Ohms; (7)Tolerance: 25 %; (8)Operating Temperature Range: - 55℃ to + 125 ℃; (9)Dimensions: 0.85 mm W x 2 mm L x 1.25 mm H; (10)Package / Case: 0805 (2012 metric); (11)Packaging: Reel; (12)Product: Chip Ferrite Beads; (13)Factory Pack Quantity: 4000; (14)Termination Style: SMD/SMT.
Features
BLM21AG601SN1D features: (1)1/2 DC resistance than conventional type by latest technology: New ferrite material; optimum ferrite firing condition; Fine piling technology; Advanced coil pattern design technology; (2)Improved stability of performance at heat shock; (3)Wide line-up from 10 to 1000ohm(@100MHz) useful for signal line.

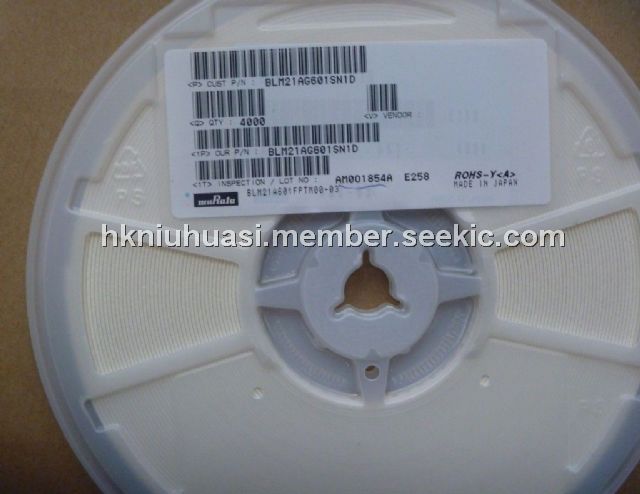

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BLM21AG601SN1D |
Murata |
EMI Filter Beads, Chokes & Arrays 0805 600 OHM |
Data Sheet |
|
|
||||||||||||
 |
BLM21AG601SN1D-X |
Murata |
EMI Filter Beads, Chokes & Arrays 600 OHM LOW SPEED SI |
Data Sheet |
Negotiable |
|
||||||||||||
