Product Summary
The BCM5325MA2IQM is a five-port 10/100 switch with on-chip packet buffer.
Parametrics
BCM5325MA2IQM benefits: (1)Enables a new generation of lower cost 10/100 switches in much smaller form factors; (2)Utilizes field-proven industry-standard 10BASE-T/100BASETX Fast Ethernet transceivers條owering overall system interoperability and reliability risks; (3)Flexible interfaces support a wider variety of application needs-fiber for long distances or an additional 100TX port; (4)Sufficient address range handles all remote office, branch office and home office needs; (5)Port VLAN and 802.1p priority enables the switch to be designed into a wide variety of applications.
Features
BCM5325MA2IQM features: (1)The highest level of silicon integration achieved for a five-port 10/100 Ethernet switch device; (2)Fourth generation switch on a chip; (3)Packet classification 802.1p QoS priority queues; (4)Port-based VLAN; (5)MII or 7-wire interface supports an additional 100FX or 100TX connection enabling a sixth user connection or uplink; (6)Supports up to 2K MAC addresses; (7)Flow control: full-duplex (802.3x) and half-duplex options supported; (8)Supports automatic address learning and aging; (9)Internal oscillator circuit; (10)Typical power consumption: < 1.4W; (11)128-pin PQFP package.

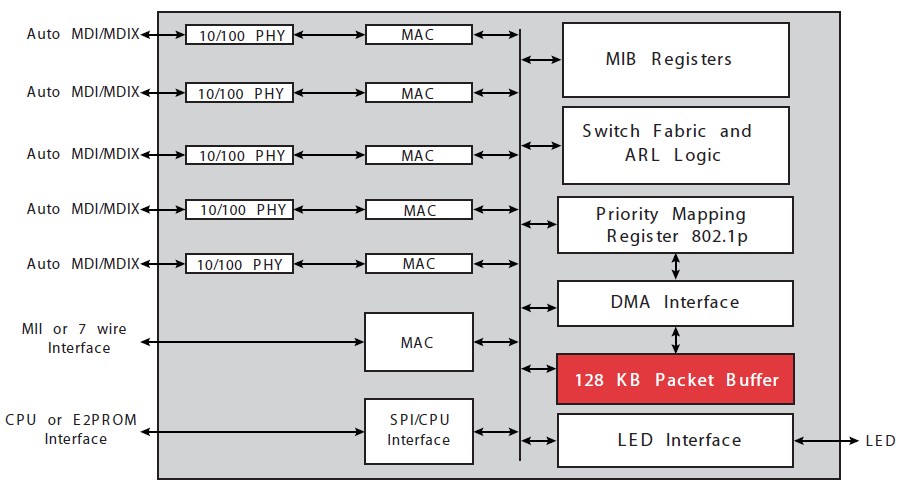

Diagrams
 |
