Product Summary

The AFS374E is a SMD 374.0MHz SAW filter.

Parametrics

AFS374E absolute maximum ratings: (1)Ultimate Rejection: 50dB; (2)DC Voltage: ±30V; (3)Source Power: 0dBW; (4)Operating Temperature: -35 to 85℃; (5)Storage Temperature: -45 to 85℃.

Features

AFS374E features: (1)Center Frequency Fc: 374MHz; (2)Bandwidth: 17MHz min; 20.5MHz typ; (3)Insertion Loss @ Passband: 8.5dB typ; 10.5dB max; (4)Ripple @ Passband: 0.5dB typ; 1dB max.

Diagrams

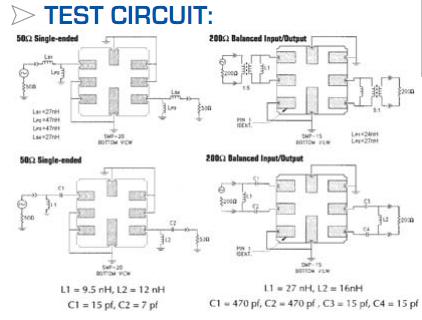

AFS374E test circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AFS374E
AFS374E
ABRACON
Signal Conditioning 374MHz
Data Sheet
0-1000: $0.41
1000-3000: $0.39
3000-5000: $0.38
