Product Summary

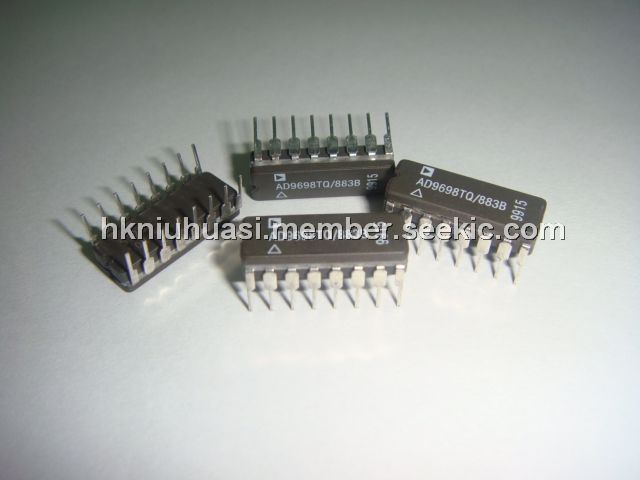

The AD9698TQ-883B is an ultrafast TTL-compatible voltage comparator. It is able to achieve propagation delays previously possible only in high performance ECL devices. The AD9698TQ-883B is a dual comparator with equally high performance ideal for critical timing circuits in such applications as ATE, communications receivers and test instruments. The applications of the AD9698TQ-883B include High Speed Line Receivers, Peak Detectors, Window Comparators, High Speed Triggers, Ultrafast Pulse Width Discriminators.

Parametrics

AD9698TQ-883B absolute maximum ratings: (1)Supply Voltage (+VS/–VS): +7 V/–7 V; (2)Input Voltage Range: ±5 V; (3)Differential Input Voltage: 5.4 V; (4)Latch Enable Voltage:–0.5 V to +VS; (5)Output Current (Continuous): 20 mA; (6)Power Dissipation: 600 mW; (7)Operating Temperature Range: 0 to +70℃; (8)Storage Temperature Range: –65 to +150℃; (9)Junction Temperature: +175℃; (10)Lead Soldering Temperature (10 sec): +300℃.

Features

AD9698TQ-883B features: (1)4.5 ns Propagation Delay; (2)200 ps Maximum Propagation Delay Dispersion; (3)Single +5 V or 65 V Supply Operation; (4)Complementary Matched TTL Outputs.

Diagrams

AD9698TQ-883B functional block diagram
