Product Summary

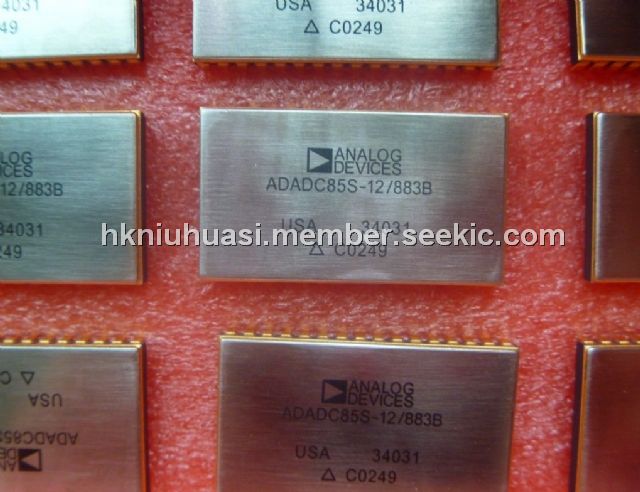

The ADC85S-12-883B is a kind of analog-to-digital converter. It adopts state-of-the-art IC and laser-trimmed thin-film components. It is available in a 32-pin hermetic side-brazed package. Complete with internal reference and input buffer amplifier, the ADC85S-12-883B offers versatility and performance formerly offered only in larger modular or rack-mount package.
Parametrics
ADC85S-12-883B specifications: (1)no missing codes temperature range: -25 to +85℃; (2)internal reference voltage, tempco of drift: ±5 ppm/℃ typ, ±10 ppm/℃ max; (3)operating temperature: -55 to +125℃; (4)power supply: ±12 or ±15 V.
Features
ADC85S-12-883B features: (1)industrial standard 12-bit A/D converter; (2)complete with clock and input buffer; (3)high speed conversion: 10μs (max) ; (4)reduced chip count-high reliability; (5)lower power dissipation: 450 mW (typ); (6)±0.012% max linearity; (7)temperature range: 0 to +70℃; (8)no missing codes over full temperature range; (9)parallel and serial outputs; (10)±12 or ±15 V power supply operation; (11)hermetic 32-pin ceramic side-brazed DIP.

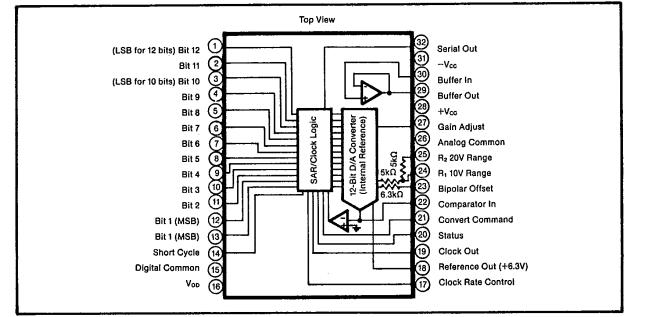

Diagrams
 |
