Product Summary

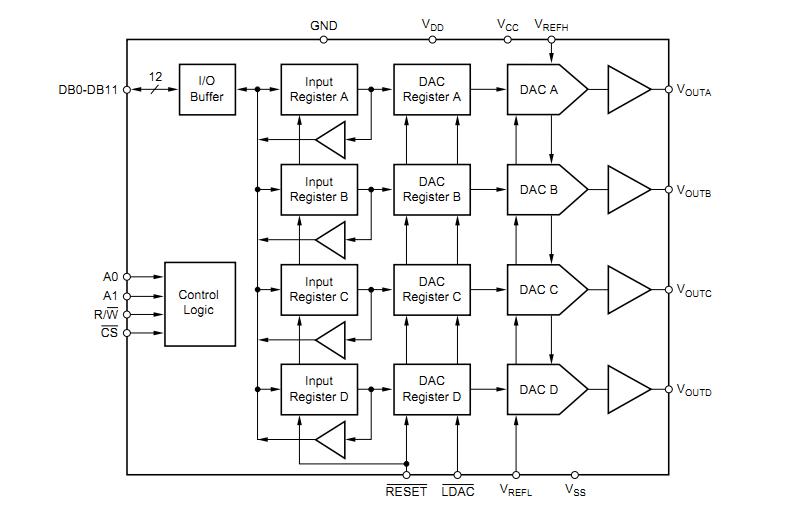

The DAC7725N is a 12-bit quad voltage output digital-to-analog converter with guaranteed 12-bit monotonic performance over the specified temperature range. The DAC7725N accepts 12-bit parallel input data, have double-buffered DAC input logic (allowing simultaneous update of all DACs), and provides a readback mode of the internal input registers. An asynchronous reset clears all registers to a zero-scale of 000H. The DAC7725N can operate from a single +15V supply, or from +15V and –15V supplies. The applications of the DAC7725N include process control, closed-loop servo-control, motor control and data acquisition systems.

Parametrics

DAC7725N absolute maximum ratings: (1)VCC to VSS: –0.3V to +32V; (2)VCC to GND: –0.3V to +16V; (3)VSS to GND: +0.3V to –16V; (4)VDD to GND: –0.3V to 6V; (5)VREFH to GND: –9V to +11V; (6)VREFL to GND (VSS = –15V): –11V to +9V; (7)VREFL to GND (VSS = 0V):–0.3V to +9V; (8)VREFH to VREFL: –1V to +22V; (9)Digital Input Voltage to GND: –0.3V to VDD + 0.3V; (10)Digital Output Voltage to GND: –0.3V to VDD + 0.3V; (11)Maximum Junction Temperature: +150℃; (12)Operating Temperature Range: –40 to +85℃; (13)Storage Temperature Range: –65 to +150℃; (14)Lead Temperature (soldering, 10s): +300℃.

Features

DAC7725N features: (1)low power: 250mW max; (2)single supply output range: +10V; (3)dual supply output range: ±10V; (4)settling time: 10μs to 0.012%; (5)12-bit linearity and monotonicity: –40 to +85℃; (6)reset to zero-scale; (7)data readback; (8)double-buffered data inputs.
