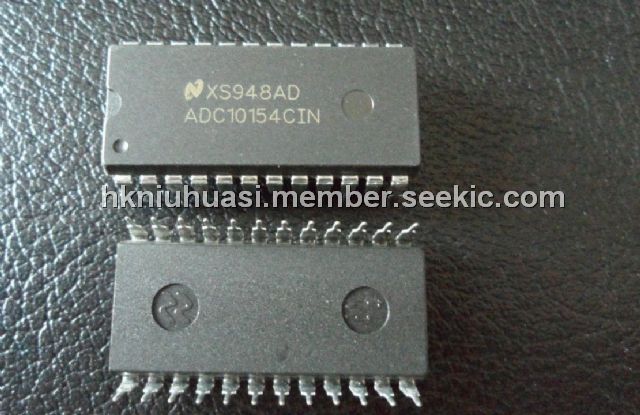

ADC10154CIN

DIP-24, 10-bit plus sign, 4 μs, ADCs, 8-channel MUX, track/hold and reference, 5V, 4.4 μs

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.24~4.85 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.24~4.85

PartNumber:: ADC10154CIN

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Becky's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-27

From Other Seller

Part Number:ADC10154CIN
US $4.24 - 4.85
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ADC10154CIN is a CMOS 10-bit plus sign successive approximation A/D converter with versatile analog input multiplexers, track/hold function and a 2.5V band-gap reference. The 4-channel or 8-channel multiplexer ADC10154CIN can be software configured for single-ended, differential or pseudo-differential modes of operation. The input track/hold of the ADC10154CIN is implemented using a capacitive array and sampled-data comparator. Resolution can be programmed to be 8-bit, 8-bit plus sign, 10-bit or 10-bit plus sign. Lower-resolution conversions can be performed faster.

Parametrics

ADC10154CIN absolute maximum ratings: (1)Resolutio10-bit plus sign; (2)Integral linearity error: ±1 LSB (max); (3)Unipolar power dissipation: 33 mW (max); (4)Conversiotime (10-bit + sign): 4.4 μs (max); (5)Conversiotime (8-bit): 3.2 μs (max); (6)Sampling rate (10-bit + sign): 166 kHz; (7)Sampling rate (8-bit): 207 kHz; (8)Band-gap reference: 2.5V ±2.0% (max).

Features

ADC10154CIN features: (1)4- or 8- channel configurable multiplexer; (2)Analog input track/hold function; (3)0V to 5V analog input range with single +5V power supply; (4)-5V to +5V analog input voltage range with ±5V supplies; (5)Fully tested iunipolar (single +5V supply) and bipolar (dual ±5V supplies) operation; (6)Programmable resolution/speed and output data format; (7)Ratiometric or Absolute voltage reference operation; (8)No zero or full scale adjustment required; (9)No missing codes over temperature; (10)Easy microprocessor interface.
