Product Summary

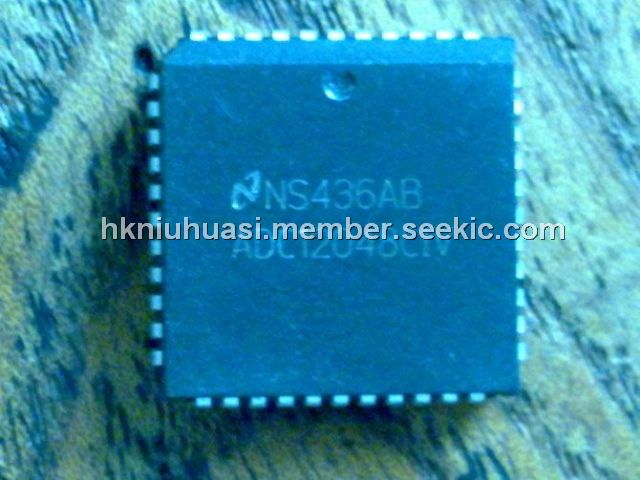

Operating from a single 5V power supply, the ADC12048CIV is a 12 bit + sign, parallel I/O, self-calibrating, sampling analog-to-digital converter (ADC) with an eight input fully differential analog multiplexer. The maximum sampling rate is 216 kHz. On request, the ADC goes through a self-calibration process that adjusts linearity, zero and full-scale errors. The applications of the ADC12048CIV include Medical instrumentation, Process control systems, Test equipment, Data logging, Inertial guidance.

Parametrics

ADC12048CIV absolute maximum ratings: (1)Supply Voltage (VA+ and VD+): 6.0V; (2)Voltage at all Inputs: -0.3V to V+ + 0.3V; (3)|VA+-VD+|: 300 mV; (4)|AGND - DGND|: 300 mV; (5)Input Current at Any Pin: ±30 mA; (6)Package Input Current: ±120 mA; (7)Power Dissipation: 875 mW; (8)Storage Temperature: -65 to +150℃; (9)Lead Temperature: 210℃; (10)ESD Susceptibility: 3.0 kV.

Features

ADC12048CIV features: (1)8-channel programmable Differential or Single-Ended multiplexer; (2)Programmable Acquisition Times and user-controllable Throughput Rates; (3)Programmable data bus width (8/13 bits); (4)Built-in Sample-and-Hold; (5)Programmable Auto-Calibration and Auto-Zero cycles; (6)Low power standby mode; (7)No missing codes.

Diagrams

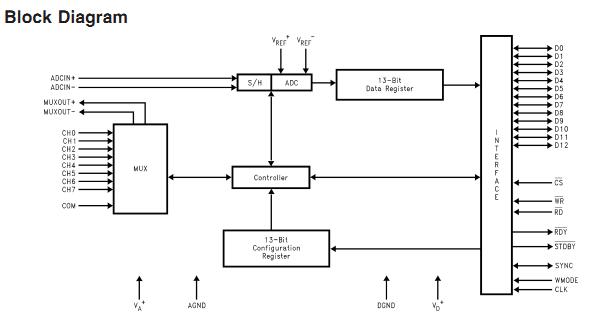

ADC12048CIV block diagram
