Product Summary
The AD9516-1BCPZ provides a multi-output clock distributionfunction with subpicosecond jitter performance, along with an on-chip PLL and VCO. The on-chip VCO tunes from 2.30 GHz to2.65 GHz. Optionally, an external VCO/VCXO of up to 2.4 GHzmay be used.The AD9516-1BCPZ emphasizes low jitter and phase noise tomaximize data converter performance and can benefit otherapplications with demanding phase noise and jitter requirements. The AD9516-1BCPZ is specified for operation over the industrialrange of −40℃ to +85℃. Applications include Low jitter, low phase noise clock distribution, Clocking high speed ADCs, DACs, DDSs, DDCs, DUCs, MxFEs, High performance wireless transceivers, High performance instrumentation, Broadband infrastructure and ATE.
Parametrics
AD9516-1BCPZ absolute maximum ratings: (1)REFMON, STATUS, LD: -0.3 V to VS + 0.3 V; (2)Junction Temperature: 150℃; (3)Storage Temperature Range: -65℃ to +150℃; (4)Lead Temperature (10 sec): 300℃.
Features
AD9516-1BCPZ features: (1)Low phase noise, phase-locked loop; (2)3 pairs of 1.6 GHz LVPECL outputs; (3)2 pairs of 800 MHz LVDS clock outputs; (4)Eight 250 MHz CMOS outputs (two per LVDS output); (5)Automatic synchronization of all outputs on power-up; (6)Manual synchronization of outputs as needed; (7)Serial control port; (8)64-lead LFCSP.

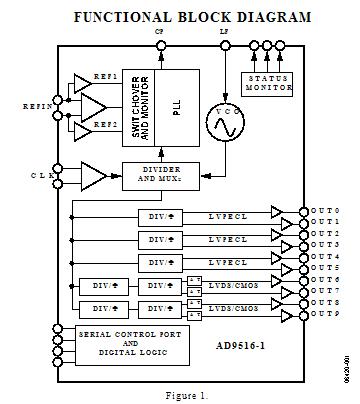

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD9516-1BCPZ |
|
IC CLOCK GEN 2.5GHZ VCO 64-LFCSP |
Data Sheet |
|
|
||||||||||||||||
|
AD9516-1BCPZ-REEL7 |
|
IC CLOCK GEN 2.5GHZ VCO 64-LFCSP |
Data Sheet |
|
|
||||||||||||||||
