Product Summary

The AD7008JP50 direct digital synthesis chip is a numerically controlled oscillator employing a 32-bit phase accumulator, sine and cosine look-up tables and a 10-bit D/A converter integrated on a single CMOS chip. The AD7008JP50 is available in 44-pin PLCC. A power-down pin allows external control of a power-down mode (also accessible through the microprocessor interface). The applications of the AD7008JP50 are Frequency Synthesizers Frequency, Phase or Amplitude Modulators, DDS Tuning, Digital Modulation.

Parametrics

AD7008JP50 absolute maximum ratings: (1)VAA, VDD to GND:–0.3 V to +7 V; (2)AGND to DGND:–0.3 V to +0.3 V; (3)Digital I/O Voltage to DGND:–0.3 V to VDD + 0.3 V; (4)Analog I/O Voltage to AGND:–0.3 V to VDD + 0.3 V; (5)Operating Temperature Range: Industrial (A Version):–40℃ to +85℃, Commercial (J Version):0℃ to +70℃; (6)Storage Temperature Range:–65℃ to +150℃; (7)Lead Temperature (Soldering, 10 secs):+300℃; (8)Junction Temperature:+115℃; (9)PLCC:θJA Thermal Impedance:+53.8℃/W, θJC Thermal Impedance:+24.1℃/W.

Features

AD7008JP50 features: (1)Single +5 V Supply; (2)32-Bit Phase Accumulator; (3)On-Chip COSINE and SINE Look-Up Tables; (4)On-Chip 10-Bit DAC; (5)Frequency, Phase and Amplitude Modulation; (6)Parallel and Serial Loading; (7)Software and Hardware Power Down Options; (8)20 MHz and 50 MHz Speed Grades; (9)44-Pin PLCC.

Diagrams

AD7008JP50 functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

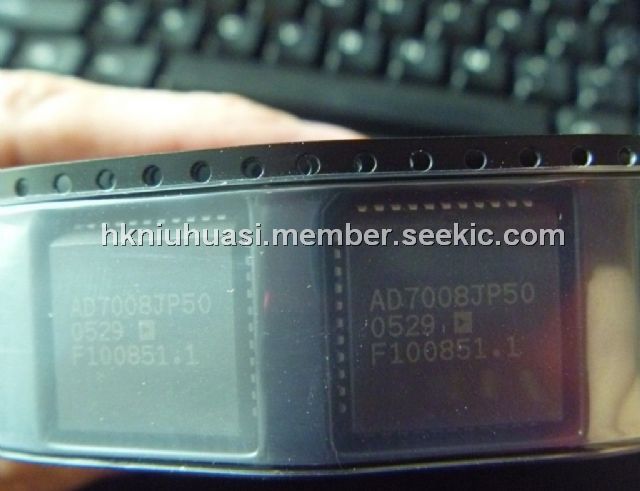

AD7008JP50
AD7008JP50

Analog Devices Inc

IC CMOS DDS MODULATOR 44-PLCC

Data Sheet

Negotiable
AD7008JP50-REEL
AD7008JP50-REEL

Analog Devices Inc

IC DDS MODULATOR CMOS 44-PLCC

Data Sheet

Negotiable
