Product Summary

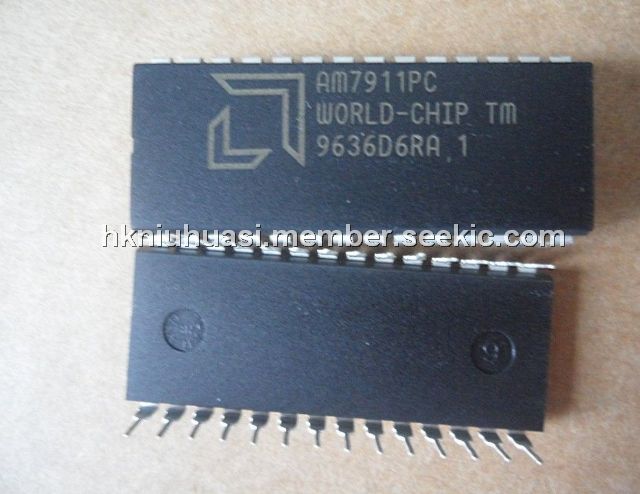

The AM7911PC is a high performance FSK modem chip. It includes most of the building blocks required for a complete communication system. The AM7911PC features include: analog-to-digital and digital-to-analog converters, internal crystal oscillator, and the essential RS-232/CCITT V.24 terminal control signals with TTL levels. A DAA or acoustic cuopler must be supplied externally to provide the phone line interface. The AM7911PC has the same basic structure as shown in the simplified blocj diagram.
Parametrics
AM7911PC absolute maximum ratings: (1)storage temperature: -65 to 125℃; (2)ambient temperature with power applied: commercial devices: 0 to 70℃; industrial devices: -40 to 85℃; extended devices: -55 to 125℃; (3)Vcc with respect to DGND: +6v/-4v; (4)VBB with respect to DGND: +6v/-4v; (5)all signal voltage with respect to DGND: +5v.
Features
AM7911PC features: (1)complete FSK modem in 28 pin package; (2)300 bps full-duplex operation; (3)1200 bps half-duplex operation; (4)1200 bps full-duplex on four-wire; (5)compatible with bell 103/113/108, bell 202, CCITT V.21, and V.23; (6)available in CDIP, PDIP, and PLCC; (7)commercial, industrial and extended temperature range ; (8)no external filtering required; (9)all digital signal processing, digital filtering, and A/D-D/A conversion on-chip; (10)includes essential RS-232/CCITT v.24 handshake signals on-chip; (11)autoanswer capability; (12)fast response time for leased-line networks; (13)bell 202 with 5bps or 150bps back channel; (14)V.23 with up to 150bps back channel.
Diagrams
 |
