Product Summary
The AD7524JN is a low cost, 8-bit monolithic CMOS DAC designed for direct interface to most microprocessors. Basically an 8-bit DAC with input latches, the AD7524JN’s load cycle is similar to the write cycle of a random access memory. Using an advanced thin-film on CMOS fabrication process, the AD7524JN provides accuracy to 1/8 LSB with a typical power dissipation of less than 10 milliwatts. The applications of the AD7524JN include Microprocessor Controlled Gain Circuits, Microprocessor Controlled Attenuator Circuits, Microprocessor Controlled Function Generation, Precision AGC Circuits and Bus Structured Instruments.
Parametrics
AD7524JN absolute maximum ratings: (1)VDD to GND: –0.3 V, +17 V; (2)VRFB to GND: ±25 V; (3)VREF to GND: ±25 V; (4)Digital Input Voltage to GND: –0.3 V to VDD +0.3 V; (5)OUT1, OUT2 to GND: –0.3 V to VDD +0.3 V; (6)Power Dissipation (Any Package): 450 mW; (7)Operating Temperature: –40 to +85℃; (8)Storage Temperature: –65 to +150℃; (9)Lead Temperature (Soldering, 10 secs): +300℃.
Features
AD7524JN features: (1)Microprocessor Compatible (6800, 8085, Z80, Etc.); (2)TTL/CMOS Compatible Inputs; (3)On-Chip Data Latches; (4)Endpoint Linearity; (5)Low Power Consumption; (6)Monotonicity Guaranteed (Full Temperature Range); (7)Latch Free (No Protection Schottky Required).

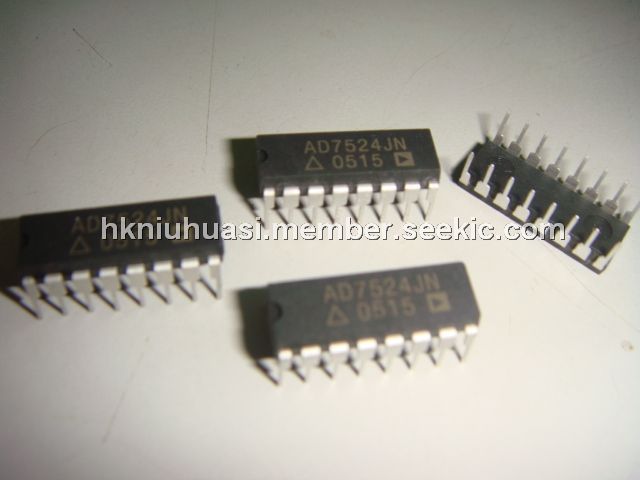

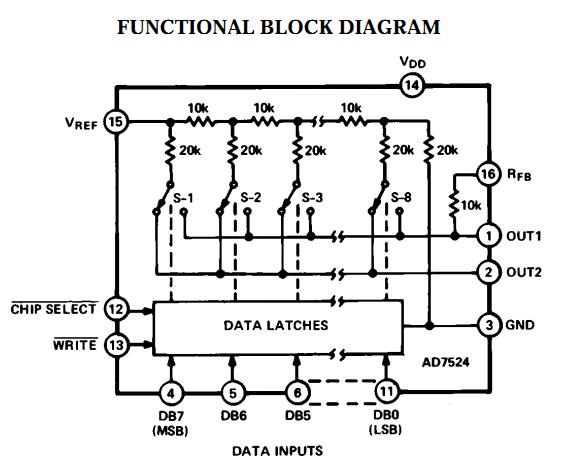

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7524JN |
|
IC DAC 8BIT MULTIPLYING 16-DIP |
Data Sheet |
|
|
||||||||||||||||||
|
AD7524JNZ |
|
IC DAC 8BIT MULTIPLYING 16-DIP |
Data Sheet |
|
|
||||||||||||||||||
