Product Summary
The 2SK1941 is an N-channel MOS-FET. It is suitable for (1)Switching Regulators; (2)UPS; (3)DC-DC converters; (4)General Purpose Power Amplifier.
Parametrics
2SK1941 absolute maximum ratings: (1)Drain-Source-Voltage VDS: 600 V; (2)Drain-Gate-Voltage (RGS=20KW) V DGR: 600 V; (3)Continous Drain Current I D: 16 A; (4)Pulsed Drain Current I D(puls): 64 A; (5)Gate-Source-Voltage V GS: ±30 V; (6)Max. Power Dissipation P D: 100 W; (7)Operating and Storage Temperature Range T ch: 150℃; (8)T stg: -55 ~ +150℃.
Features
2SK1941 features: (1)High Speed Switching; (2)Low On-Resistance; (3)No Secondary Breakdown; (4)Low Driving Power; (5)High Voltage; (6)VGS = ± 30V Guarantee; (7)Avalanche Proof.

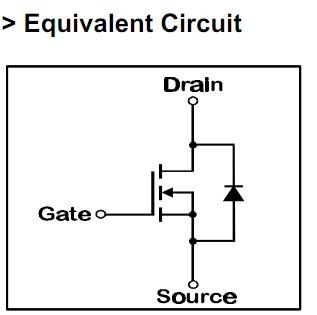

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SK1941-01R |
Other |
|
Data Sheet |
Negotiable |
|
||||||
