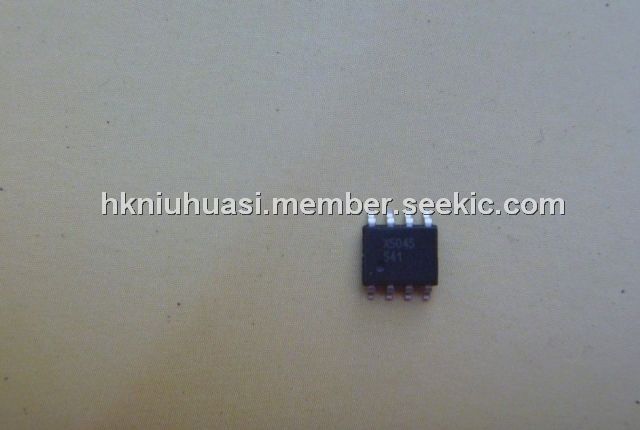

X5045S8

CPU Supervisor, 4K, 8-SOIC, 4.5V to 5.5V, 5mA, 3.3MHz, X5045S8

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.78~0.92 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.78~0.92

PartNumber:: X5045S8

Brand:: Xicor Inc. - Xicor | Pack: SOP | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Becky's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-22

From Other Seller

Part Number:X5045S8
US $0.78 - 0.92
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
CM300DY-12NF

US $63.00 - 80.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

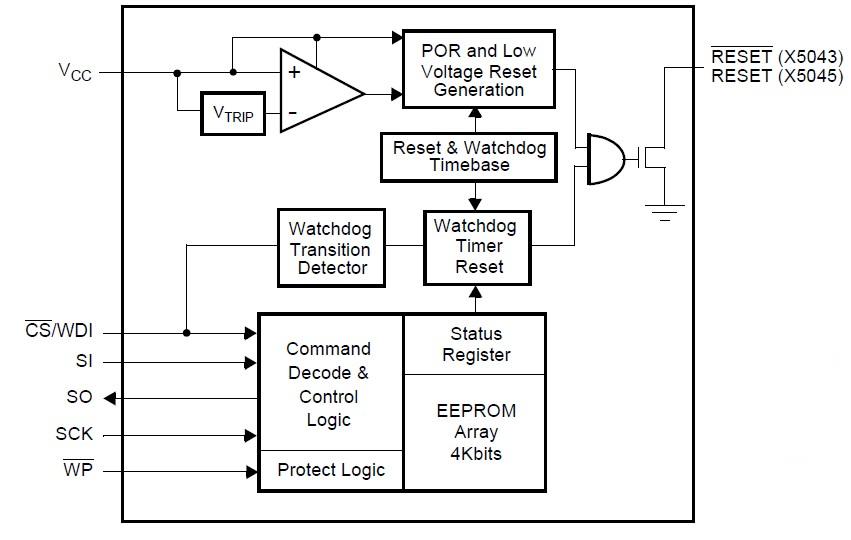

The X5045S8 is a CPU Supervisor with 4K SPI EEPROM. The device combines four popular functions, Poweron Reset Control, Watchdog Timer, Supply Voltage Supervision, and Block Lock Protect Serial EEPROM Memory in one package. This combination lowers system cost, reduces board space requirements, and increases reliability. Applying power to the X5045S8 activates the power on reset circuit which holds RESET/RESET active for a period of time. This allows the power supply and oscillator to stabilize before the processor executes code. The applications of theX5045S8 include: Communications Equipment: Routers, Hubs, Switches, Set Top Boxes; Industrial Systems: Process Control, Intelligent Instrumentation; Computer Systems: Desktop Computers, Network Servers; Battery Powered Equipment.

Parametrics

X5045S8 absolute maximum ratings: (1)Temperature under bias: –65℃ to +135℃; (2)Storage temperature: –65℃ to +150℃; (3)Voltage on any pin with respect to VSS: –1.0V to +7V; (4)D.C. output current: 5mA; (5)Lead temperature (soldering, 10 seconds): 300℃.

Features

X5045S8 features: (1)Low VCC Detection and Reset Assertion; (2)Selectable Time Out Watchdog Timer; (3)Long Battery Life with Low Power Consumption; (4)4Kbits of EEPROM-1M Write Cycle Endurance; (5)Save Critical Data with Block Lock Memory; (6)Built-in Inadvertent Write Protection; (7)SPI Interface - 3.3MHz Clock Rate; (8)Minimize Programming Time; (9)Pb-Free Plus Anneal Available.
