Product Summary

The Xicor X2816CD-20 is a 2K x 8 E2PROM, fabricated with an advanced, high performance N-channel floating gate MOS technology. Like all Xicor Programmable nonvolatile memories it is a 5V only device. The X2816CD-20 features the JEDEC approved pinout for byte-wide memories, compatible with industry standard RAMs, ROMs and EPROMs. The X2816CD-20 supports a 16-byte page write operation, typically providing a 300ms/byte write cycle, enabling the entire memory to be written in less than 640ms. The X2816CD-20 also features DATA Polling, a system software support scheme used to indicate the early completion of a write cycle.

Parametrics

X2816CD-20 absolute maximum ratings: (1)Temperature under Bias: –10℃ to +85℃; (2)Storage Temperature: –65℃ to +150℃; (3)Voltage on any Pin with Respect to VSS: –1V to +7V; (4)D.C. Output Current: 5mA; (5)Lead Temperature (Soldering, 10 seconds): 300℃.

Features

X2816CD-20 features: (1)Simple Byte and Page Write: Single 5V Supply; No External High Voltages or VPP Control; (2)Circuits; Self-Timed; no Erase Before Write; no Complex Programming Algorithms; no Overerase Problem; (3)High Performance Advanced NMOS Technology; (4)Fast Write Cycle Times: 16 Byte Page Write Operation; byte or Page Write Cycle: 5ms Typical; Complete Memory Rewrite: 640ms Typical; Effective Byte Write Cycle Time: 300ms Typical; (5)DATA Polling: allows User to Minimize Write Cycle Time; (6)JEDEC Approved Byte-Wide Pinout; (7)High Reliability: Endurance: 10,000 Cycles; Data Retention: 100 Years.

Diagrams

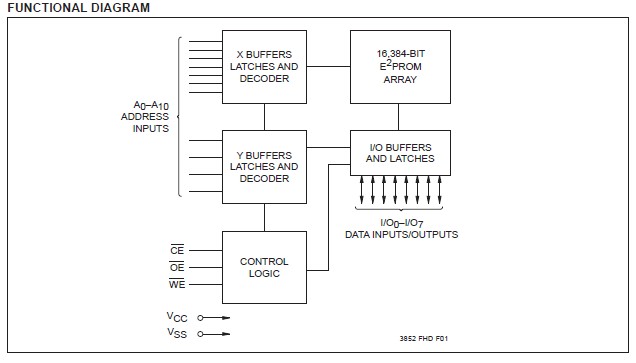

X2816CD-20 functional diagram
