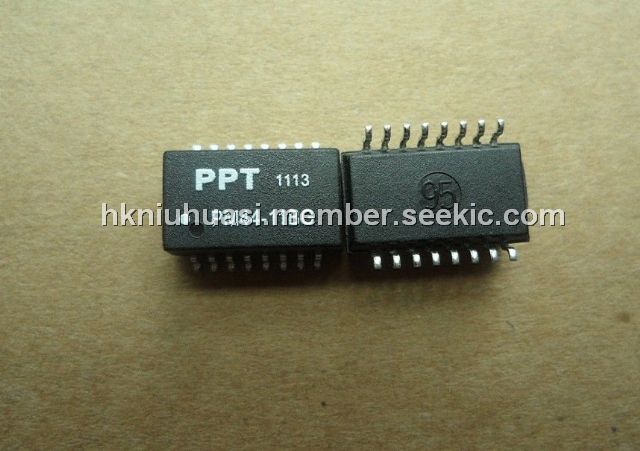

The PM44-11BG 10/100Base-T Single port Magnetics meets The Isolation, Insertion Loss and Return Loss Requirements of IEEE802.3.
Parametrics
PM44-11BG electrical specifications: (1)Turns Ratio, 1-3:16-14: 1CT:1CT; (2)Turns Ratio, 6-8:11-9: 1CT:1CT; (3)Leakage inductance: 0.4 μH MAX; (4)Insertion Loss, 0.1~100MHz: -1.0; (5)Return Loss, 0.5~30MHz: -18.0 ; (6)Return Loss, 40MHz: -16.5 ; (7)Return Loss, 50MHz: -14.5 ; (8)Return Loss, 60~80MHz: -12.0; (9)operating temperature: 0℃to70℃.
Features
PM44-11BG features: (1)Meet The Isolation, Insertion Loss and Return Loss Requirements of IEEE802.3; (2)16Pin SOIC Low Profile Package Isolation Modules.

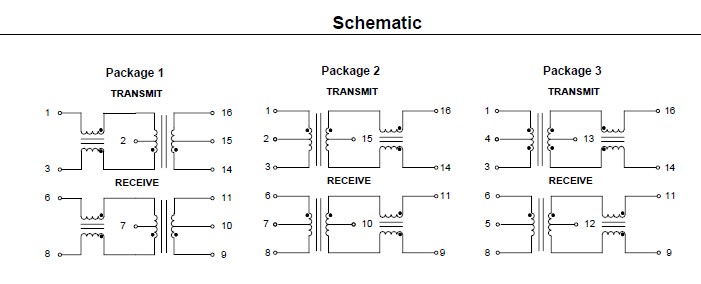

Diagrams
