Product Summary
The UAA3201T is a fully integrated single-chip receiver, primarily intended for use in VHF and UHF systems employing direct AM Return-to-Zero (RZ) Amplitude Shift Keying (ASK) modulation. Applications include Car alarm systems, Remote control systems, Security systems, Gadgets and toys
Telemetry.
Parametrics
UAA3201T absolute maximum ratings: (1)supply voltage: -0.3 +8.0 V; (2)ambient temperature: -40 +85℃; (3)storage temperature: -55 +125℃.
Features
UAA3201T features: (1)Oscillator with external Surface Acoustic Wave Resonator (SAWR); (2)Wide frequency range from 150 to 450 MHz; (3)High sensitivity; (4)Low power consumption; (5)Automotive temperature range; (6)Superheterodyne architecture; (7)Applicable to fulfil FTZ 17 TR 2100 (Germany); (8)High integration level, few external components; (9)Inexpensive external components; (10)IF filter bandwidth determined by application.

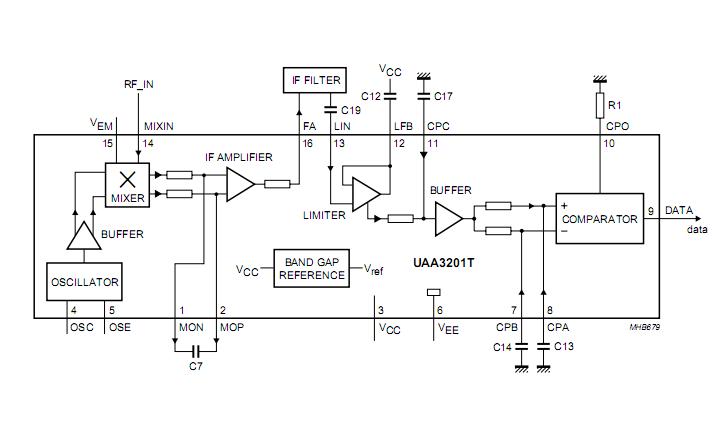

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |

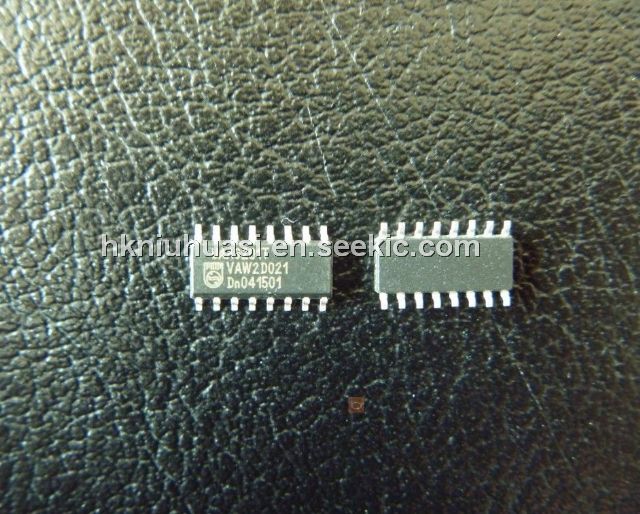

![]() UAA3201T |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||
![]() |
![]() UAA3201T/V1,112 |
![]() NXP Semiconductors |
![]() RF Transceiver REMOTE CONTROL RECVR |
![]() Data Sheet |
![]() Negotiable |
|
||||
![]() |
![]() UAA3201T/V1,118 |
![]() NXP Semiconductors |
![]() RF Transceiver REMOTE CONTROL RECVR |
![]() Data Sheet |
![]() Negotiable |
|
||||
![]() |
![]() UAA3201TD |
![]() NXP Semiconductors |
![]() RF Transceiver REMOTE CONTROL RECVR |
![]() Data Sheet |
![]() Negotiable |
|
||||
![]() |
![]() UAA3201TD-T |
![]() NXP Semiconductors |
![]() RF Transceiver REMOTE CONTROL RECVR |
![]() Data Sheet |
![]() Negotiable |
|
