Product Summary
The STDP8028-AB is an innovative System-on-Chip (SoC) controller designed for multimedia monitors and emerging digital display applications. This IC provides a complete multimedia LCD monitor solution chassis supporting worldwide video and audio standards where exceptional quality is required. The STDP8028-AB proficiently handles video and computer graphics inputs up to WUXGA resolutions. The output port delivers unparalleled image quality and supports display resolutions of up to WUXGA as well. Its rich feature set, high level of integration, and sophisticated implemented technologies for color management, scaling, video processing (Faroudja DCDi Cinema), and audio processing make STDP8028 the ideal answer for a high-quality, cost-effective, integrated multimedia monitor solution
Features
STDP8028-AB features: (1)Dual 10-bit triple ADCs with capture up to 205 MHz; (2)Integrated dual digital inputs supporting HDMI 1.3 receiver; (3)Integrated DisplayPort 1.1 compliant receiver; (4)Integrated 3D video decoder; (5)Next generation true 10-bit Faroudja DCDi Cinema? format processing; (6)Flexible DDR2 memory interface 32 bits wide; (7)Advanced Picture-in-Picture (PIP) features capabilities; (8)Faroudja RealColor? processing; (9)On-chip microprocessor; (10)Advanced bit-mapped OSD controller; (11)Embedded 10-bit dual-channel LVDS for WUXGA panel support; (12)Multi-standard digital and analog audio decoder and post-processor; (13)Package: 409 HSBGA.

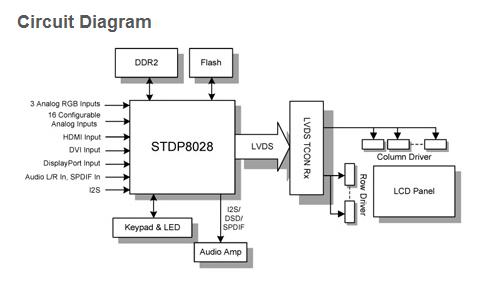

Diagrams
