Product Summary

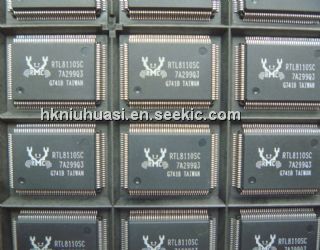

The RTL8110SC is a Single-Chip Gigabit LOM Ethernet Controller. The RTL8110SC support the PCI v2.3 bus interface for host communications with power management and are compliant with the IEEE 802.3 specification for 10/100Mbps Ethernet and the IEEE 802.3ab specification for 1000Mbps Ethernet. The RTL8110SC also supports an auxiliary power auto-detect function, and will auto-configure related bits of the PCI power management registers in PCI configuration space. The RTL8110SC supports the Advanced Configuration Power management Interface (ACPI)--power management for modern operating systems that are capable of Operating System-directed Power Management (OSPM)--to achieve the most efficient power management possible. PCI Message Signaled Interrupt (MSI) is also supported

Features

RTL8110SC features: (1)Integrated 10/100/1000 transceiver ; (2)Auto-Negotiation with Next Page capability ; (3)Supports PCI rev.2.3, 32-bit, 33/66MHz ; (4)Supports pair swap/polarity/skew correction ; (5)Crossover Detection & Auto-Correction ; (6)Wake-on-LAN and remote wake-up support ; (7)Microsoft? NDIS5 Checksum Offload (IP, TCP, UDP) and largesend offload support ; (8)Supports Full Duplex flow control (IEEE 802.3x) ; (9)Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab ; (10)Supports IEEE 802.1P Layer 2 Priority Encoding ; (11)Supports IEEE 802.1Q VLAN tagging ; (12)Serial EEPROM ; (13)3.3/1.8/1.5V signaling, 5V PCI I/O tolerant ; (14)0.15μm CMOS process ; (15)Transmit/Receive FIFO (8K/64K) support ; (16)Supports power down/link down power saving ; (17)Supports PCI Message Signaled Interrupt (MSI) ; (18)128-pin QFP package for RTL8110SC and 128-pin LQFP package for RTL8110SCL.
